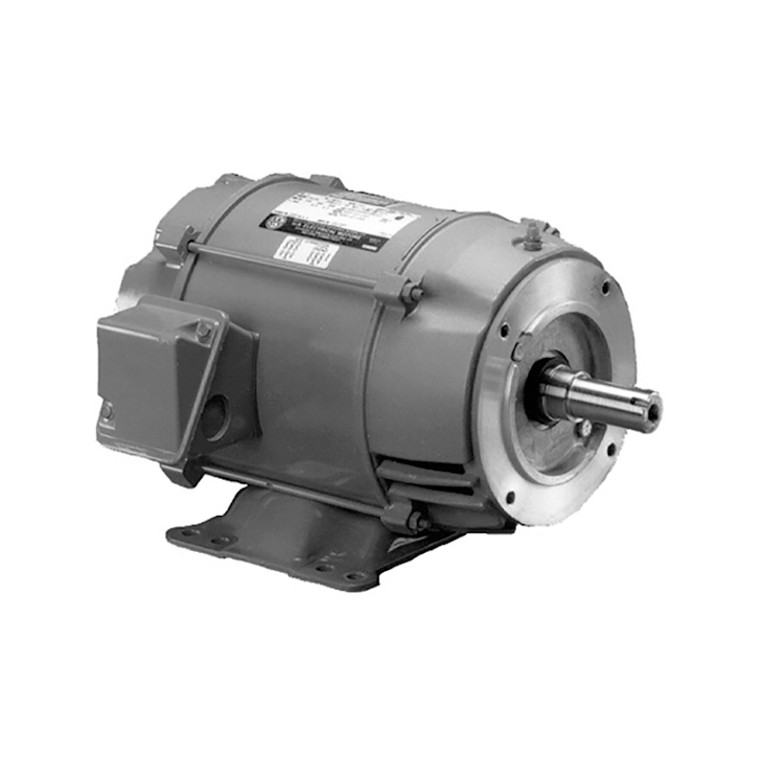

US Motors (Nidec), AC Motor, DJ15P2HP, 15 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 254JP (DJ15P2HP)

US Motors (Nidec), AC Motor, DJ15P2HP, 15 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 254JP (DJ15P2HP)

Brand:
US Motors (Nidec)
Model:
DJ15P2HP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DJ15P2HP
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
15 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
254JP
Rated Supply Voltage:
200 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
44.3
Rated Voltage:
208 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93%
Bearing Type:
6309-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
42 A

Product Information

US Motors (Nidec) Series

15 HP, 1775 RPM, DJ15P2HP, 200 V, 60 HZ, 254JP
