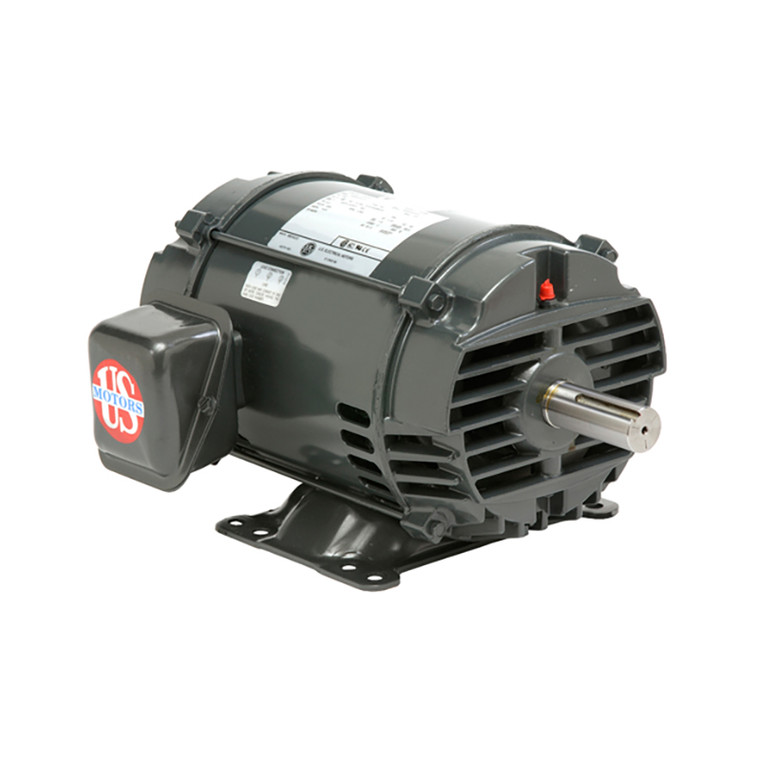

US Motors (Nidec), AC Motor, DH30S1BF, 30 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 256T (DH30S1BF)

US Motors (Nidec), AC Motor, DH30S1BF, 30 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 256T (DH30S1BF)

Brand:
US Motors (Nidec)
Model:
DH30S1BF
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
DH30S1BF
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
30 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3520 RPM
Frame Size:
256T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
44.8
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Efficiency:
89.5%
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
71/36 A

Product Information

US Motors (Nidec) Series

30 HP, 3520 RPM, DH30S1BF, 230/460 V, 60 HZ, 256T
