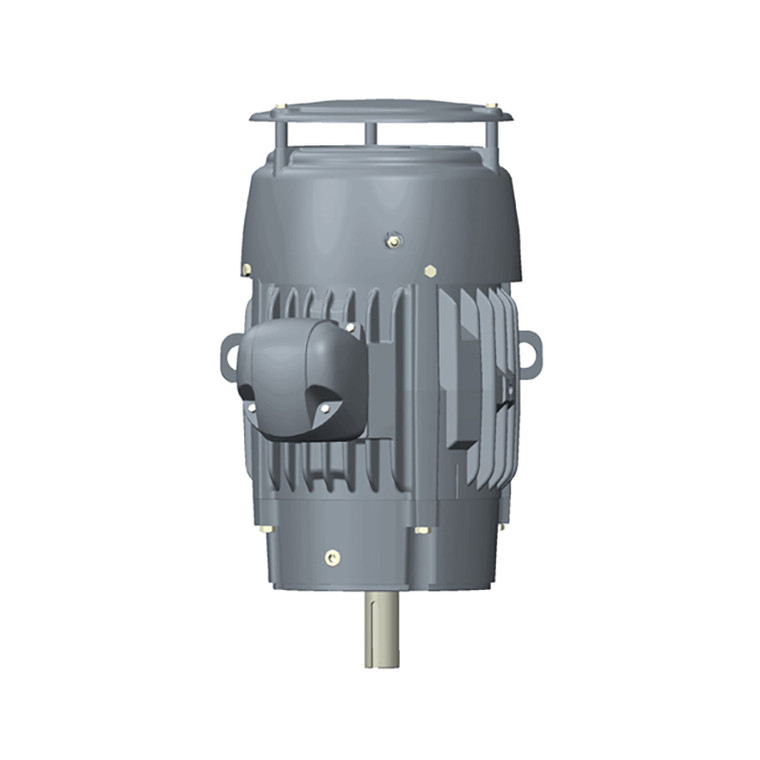

US Motors (Nidec), AC Motor, C100P2FSCR, 100 HP, 1800 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405TSC (C100P2FSCR)

US Motors (Nidec), AC Motor, C100P2FSCR, 100 HP, 1800 RPM, Three Phase, 380, 460 V, 60 , 50 Hz, 405TSC (C100P2FSCR)

Brand:
US Motors (Nidec)
Model:
C100P2FSCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

100 HP, 1780 & 1475 RPM, C100P2FSCR, 460 & 380 V, 60 & 50 HZ, 405TSC
Download Brochure
Download Manual

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction (Steel Frame & Fan Cover On 140 Frame)
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • Oversized Conduit Box - 1 Size Larger Than NEMA®† Standard
  • Cast Iron Inner Bearing Caps (180 Frame & Larger)
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Threaded Brass Breather Plugs
