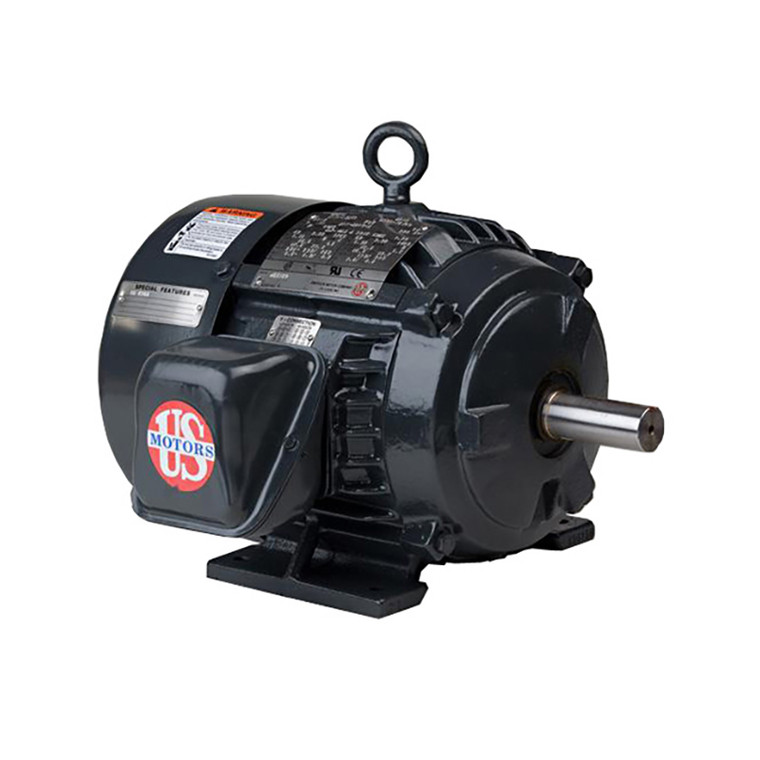

US Motors (Nidec), AC Motor, A50P1CS, 50 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 365US (A50P1CS)

Brand:
US Motors (Nidec)
Model:
A50P1CS
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
A50P1CS
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
50 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3570 RPM
Frame Size:
365US
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
73.6
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93.6%
Construction:
Cast Iron
Bearing Type:
65BC02JPP3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
56 A

Product Information

US Motors (Nidec) Series

50 HP, 3570 RPM, A50P1CS, 460 V, 60 HZ, 365US
