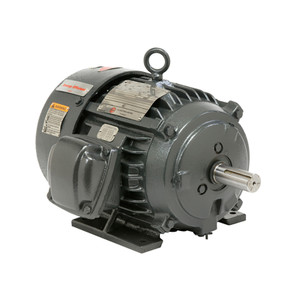

US Motors (Nidec), AC Motor, 8D2P1C, 2 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 145T (8D2P1C)

US Motors (Nidec), AC Motor, 8D2P1C, 2 HP, 3600 RPM, Three Phase, 460 V, 60 Hz, 145T (8D2P1C)

Brand:
US Motors (Nidec)
Model:
8D2P1C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

2 HP, 3510 RPM, 8D2P1C, 460 V, 60 HZ, 145T
Download Brochure
Download Manual

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

  • Inverter Grade® Insulation System (Meets NEMA® MG-1 Part 31)
  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • 40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
  • VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains
  • 5 Year Warranty (3 Years on Inverter Power)
  • External Grounding Provision, Epoxy Coated Rotor
  • 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Precision Balance (< 0.05 In/Sec Vibration)
  • 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
  • Meets or Exceeds IEEE 841 Standard 2009
  • Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous Locations only)
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
