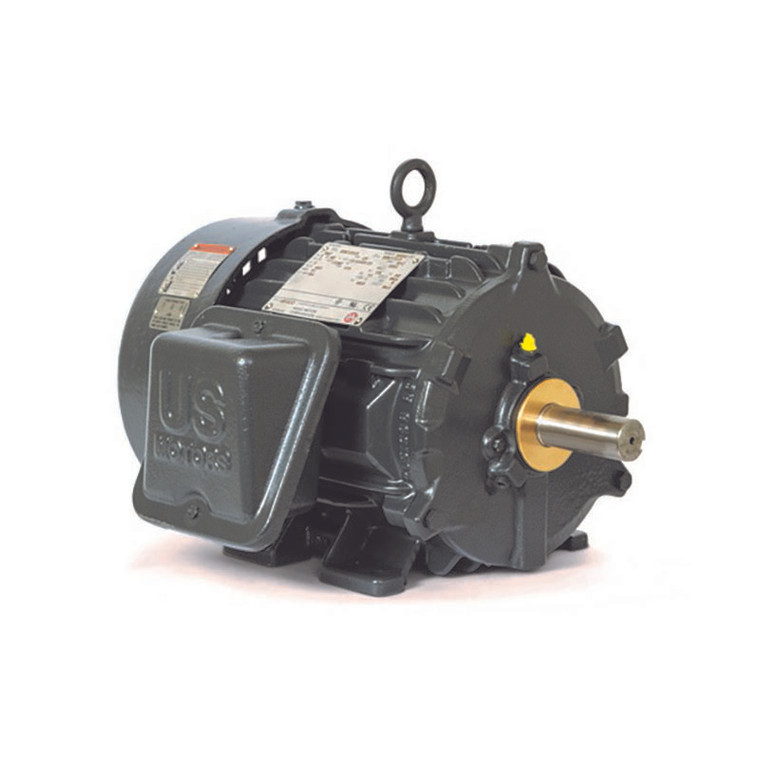

US Motors (Nidec), AC Motor, 8D40P2C, 40 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 324T

Brand: US Motors (Nidec)
Model: 8D40P2C
Condition: New
Rating:
0% of 100

In stock
Technical Specifications
Insulation Class F
Rated Input Frequency 60 Hz
Phase Three Phase
Synchronous RPM 1800 RPM
Motor Type Severe Duty
Construction Cast Iron
Motor Enclosure Type Totally Enclosed Fan Cooled (TEFC)
Frame Size 324T
Rated RPM 1780 RPM
Brand US Motors (Nidec)
Horsepower Rating 40 HP
Rated Voltage 460 V
Duty Cycle Continuous
Service Factor 1.15
Product Condition New
Full Load Torque 118.100000
Bearing Type 55BC03J3
Rated Supply Voltage 460 V
Motor Design Class B
Efficiency 94.1%
Model GC37
Motor Full Load Amps 46 A
Product Information

US Motors (Nidec) Series

40 HP, 1780 RPM, 8D40P2C, 460 V, 60 HZ, 324T

Product Features

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

  • Inverter Grade® Insulation System (Meets NEMA® MG-1 Part 31)
  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • 40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
  • VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains
  • 5 Year Warranty (3 Years on Inverter Power)
  • External Grounding Provision, Epoxy Coated Rotor
  • 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Precision Balance (< 0.05 In/Sec Vibration)
  • 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
  • Meets or Exceeds IEEE 841 Standard 2009
  • Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous Locations only)
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
