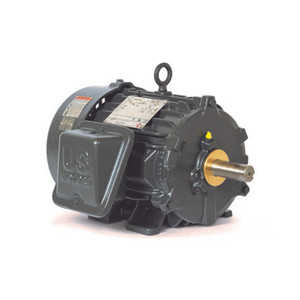

US Motors (Nidec), AC Motor, 8P40P2C, 40 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 324T (8P40P2C)

US Motors (Nidec), AC Motor, 8P40P2C, 40 HP, 1800 RPM, Three Phase, 460 V, 60 Hz, 324T (8P40P2C)

Brand:
US Motors (Nidec)
Model:
8P40P2C
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

40 HP, 1780 RPM, 8P40P2C, 460 V, 60 HZ, 324T
Download Brochure
Download Manual

841 Plus

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

  • INVERTER GRADE® Insulation System (Meets NEMA®† MG-1 Part 31)
  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction (Steel Mounting Base On 140 Frame), IP55 Enclosure
  • Corrosion Resistant Mill & Chem Duty Paint (250 Hour Salt Spray Test)
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • 40°C Ambient, NEMA®† Design B Performance (Sine Wave Power)
  • VBXX®† Bearing Isolators By Inpro/Seal On Both Ends For IP66 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains
  • Roller Bearing Available As Conversion On 400 Frame & Up
  • Cast Iron Inner Bearing Caps (180 Frame & Larger)
  • 5 Year Warranty (3 Years on Inverter Power)
  • External Grounding Provision, Epoxy Coated Rotor
  • 20:1 Variable Torque; 5:1 Constant Torque On Inverter Power
  • Precision Balance (< 0.05 In/Sec Vibration)
  • 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
  • Conversion Kits: C&D Flange, Drip Cover Kit (except 320-360)
  • Meets or exceeds IEEE 841 Standard 2009
