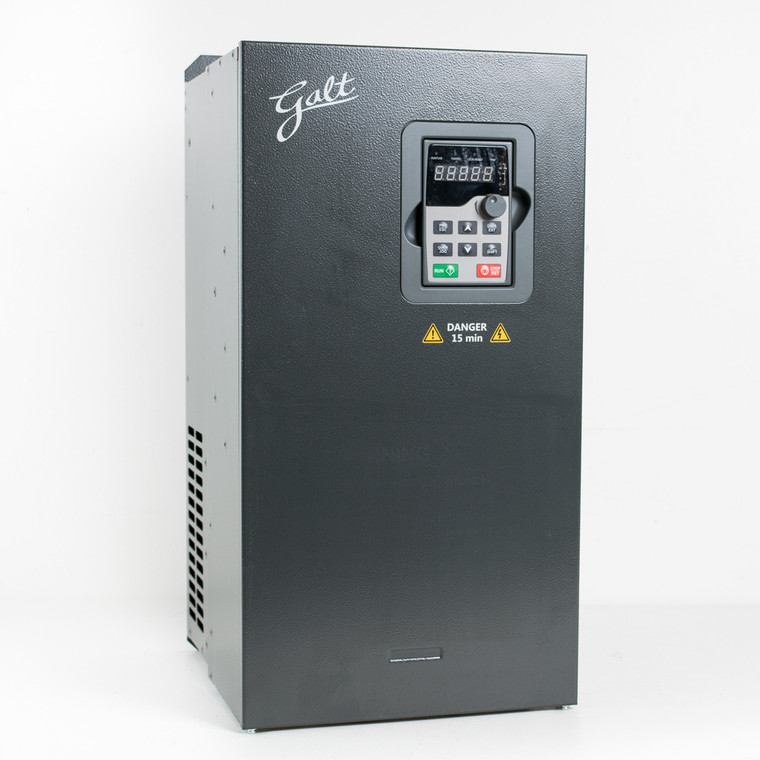

75HP, 575V, Galt Electric G300 VFD (G360-00860UL-01)

75HP, 575V, Galt Electric G300 VFD (G360-00860UL-01)

Brand:
GALT ELECTRIC
Model:
G360-00860UL-01
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge

There is a newer model of this item:

Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Built in C3 filter to prevent electromagnetic interference
  • Air-cooling technology implemented
  • Outstanding Motor Driving Performance (1:200 speed ratio)
  • Accurate parametric auto tuning of motor
  • Compatible with a range of different motors
  • External keypad used to change input/output settings easily
  • Runs 20% smoother and quieter compared with a common VFD
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
Write a Review

Technical Specifications

Product Information

GALT ELECTRIC G300 Series

The G300 series is a high-performance, high-precision VFD compatible with asynchronous and permanent magnet synchronous motors. The G300 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS, CAN, and ethernet) to communicate with the VFD. The G300 relies upon a 32-bit DSP and utilizes an advanced vector control algorithm to provide high-performance and high-precision motor control. It can also be used with the GRKP300LCD keypad for a more diverse set up.

Standard Features

  • High performance open or closed-loop sensorless vector control
  • Accurate static and rotating autotuning
  • DC injection, dynamic, flux, and short-circuit braking
  • Built-in EMC filter
  • Detachable LED keypad with upgrade option (LCD keypad) available
  • Integrated PID controller
  • 8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C relay outputs; 3 analog inputs, 2 analog outputs
  • Modbus Communication protocol standard
Download Manual

Galt G300 Series - The Fine line between simplicity and performance

Galt Electric G300 Series Inverter

The G300 series is a high performance and high precision VFD compatible with asynchronous and permanent magnet synchronous motors. The G300 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS, CAN, and ethernet) to communicate with the VFD. The G300 relies upon a 32-bit DSP and utilizes an advanced vector control alogrithm to provide a high performance and high precision motor control. It can also be used with the GRKP300LCD Keypad for a more diverse set up.

  • Air-cooling technology implemented
  • Outstanding Motor Driving Performance (1:200 speed ratio)
  • Accurate parametric auto tuning of motor
  • Compatible with a range of different motors
  • External keypad used to change input/output settings easily
  • Runs 20% smoother and quieter compared with a common VFD QR Code
  • Display for Additional Parameter Information and Fault Troubleshooting
  • High performance open or closed-loop sensorless vector control
  • Accurate static and rotating autotuning
  • DC injection, dynamic, flux, and short-circuit braking
  • Built-in EMC filter
  • Detachable LED keypad with upgrade option (LCD keypad) available
  • Integrated PID controller 8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C
  • relay outputs; 3 analog inputs, 2 analog outputs


Videos


VFD Quick Start Guide

Quick start guide for G200, G300, G500 series VFD


How to Program a Galt Electric G300 Series VFD

Basic programming instructions for the Galt Electric G300 series VFDs




How to Wire a Galt Electric G300 Series VFD

Wiring instructions for the Galt Electric G300 series VFDs


How to Maintain Your VFD

Some suggestions for maintaining your VFDs




How to Troubleshoot Error Codes on Your VFD

Your VFD is tripping and giving you an error code? What do you do from here?
