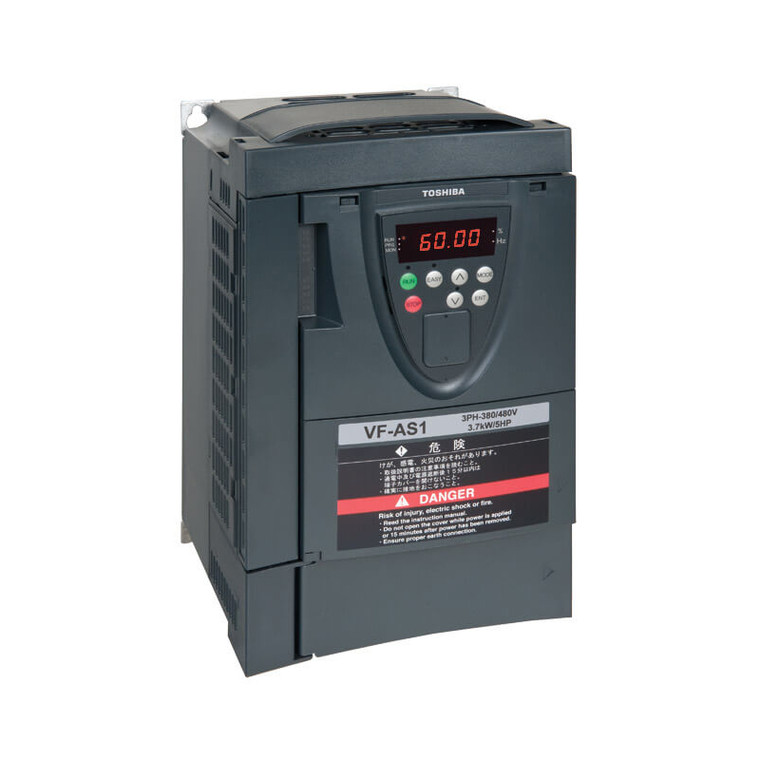

75HP 460V Toshiba AS1 VFD, Inverter, AC Drive VFAS1-4550PL-HN (VFAS1-4550PL-HN)

75HP 460V Toshiba AS1 VFD, Inverter, AC Drive VFAS1-4550PL-HN (VFAS1-4550PL-HN)

Brand:
TOSHIBA
Model:
VFAS1-4550PL-HN
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • 100% Continuous Overload Rating, 150% for 60 Seconds
  • Eight Programmable Discrete Inputs with Selectable Sink or Source Logic
  • Three Programmable Discrete Outputs: One Form-C Contact and Two Open Collector Outputs
  • Three Programmable Analog Inputs: One 4 to 20 mA, One 0 to 10 VDC Input, and One ¤10 VDC Input
  • Two Programmable Analog Outputs: One 4 to 20 mA or 0 to 10 VDC and One 0 to 1 mA Output or 0 to 7.5 VDC
  • Two-Wire/Four-Wire RS485
  • Auto-Restart Operation/Catch a Spinning Motor
  • Improved PID Algorithms
  • Built-In EMC Filter
Write a Review

Technical Specifications

Product Information

TOSHIBA AS1 Series

The AS1 series adjustable speed drive adds to the strong record Toshiba holds in creating adaptable, consistent, and powerful drives. Manufactured for functionality for the end user, the AS1 uses advanced technology to provide a powerful, reliable, and rugged drive with flexible application control.

Standard Features

  • NEMA 1 Enclosure with Additional Conduit Adapter
  • Built-In Dynamic Breaking Drive Circuit up to 250 HP2
  • Past Trip Monitoring: Stores the Last Four Faults in Succession, Along with Cumulative At-Trip Times
  • EOI: Integral Seven-Segment LED Keypad
  • Save, Restore, and Clone Multiple Drive Settings
  • Ambient Temperature: 14° to 122°F (-10° to 50°C)
  • Altitude: Up to 1000 Meters without Derate
  • Humidity: 95% Non-Condensing
  • Standards/Compliance: IEEE, UL Listed in US and Canada, CSA, NEMA, NEC, CE, NOM-117, C-TICK, and GOST
