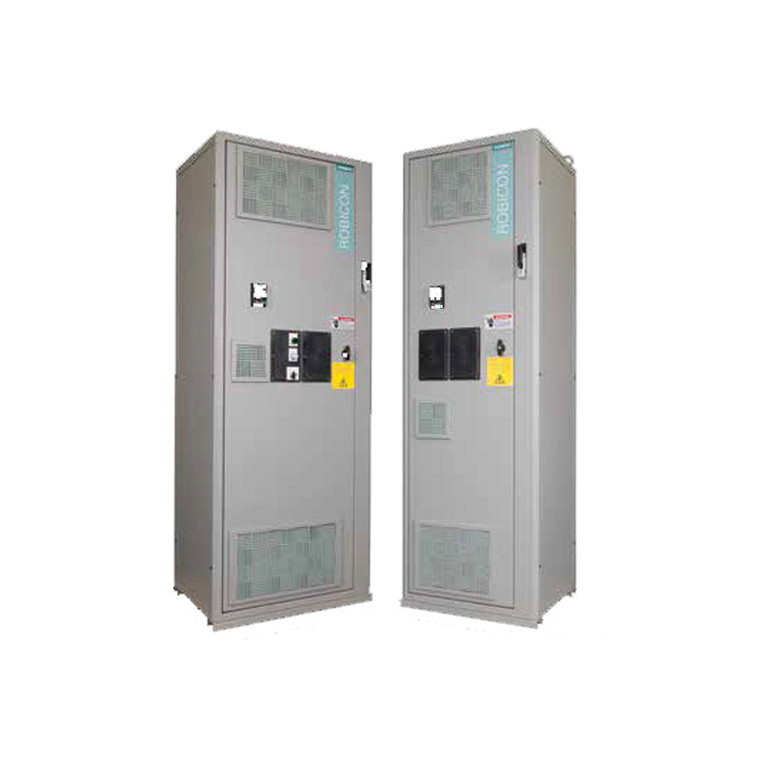

75HP 460V Siemens Robicon W120CP Industrial Control Panel, Motor Control Panel, VFD Box, 6SL3710-3BJ31-1AR0 (6SL3710-3BJ31-1AR0)

75HP 460V Siemens Robicon W120CP Industrial Control Panel, Motor Control Panel, VFD Box, 6SL3710-3BJ31-1AR0 (6SL3710-3BJ31-1AR0)

Brand:
SIEMENS
Model:
6SL3710-3BJ31-1AR0
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • NEMA 1 enclosure, with blower
  • UL listing per UL508C
  • Short circuit current rating (SCCR) 65kA at 480V AC
  • Clean power 18-pulse front end with patented phase shifting autotransformer and input line reactor
  • Motor side voltage source IGBT inverter with pulse width modulated (PWM) output
  • Circuit breaker disconnect with flange mount operator handle, mechanically interlocked with the enclosure door
  • Intelligent operator panel (IOP), door mounted for easy start-up operation
  • Windows based STARTER software-common to all models of the SINAMICS family
    • Write a Review

    Technical Specifications

    Product Information

    SIEMENS Robicon W120CP Series

    ROBICON W120CP Product Summary

    ROBICON W120CP clean power 18-pulse drives from Siemens are the result of a combination of Siemens SINAMICS and ROBICON technology. The W120CP clean power drives are now available after over 20 years of quality and expertise to produce an exceptional drive. The 18-pulse technology provides clean power to meet the low harmonic requirements of IEEE 519-1992 at the VFD input terminals. The drive can be operated in either Volts/Hertz or sensorless vector control modes. The W120 has wall mount or floor standing options.

    Features

    Standard Features

    Panel Details

    Manufacturer
    Siemens

    Series
    Robicon W120CP

    Model
    6SL37103BJ311AR0

    Condition
    New
    1 Year Manufacture Warranty

    Constant/Variable Torque
    CT/VT

    Horsepower?
    LO: 75 HP
    HO: 60 HP

    Maximum Amps?
    LO: 100 A
    HO: 90 A

    Input
    3 Phase
    460-480V 50Hz/60Hz

    Output
    3 Phase
    460-480V 50Hz/60Hz

    Enclosure Rating
    NEMA 1

    Features
    Power Module PM 240 (18-pulse diode rectifier)
    Circuit breaker disconnect
    Integral braking chopper

    Frame Size
    F

    Dimensions
    Height: 94 in
    Width: 30 in
    Depth: 24 in
