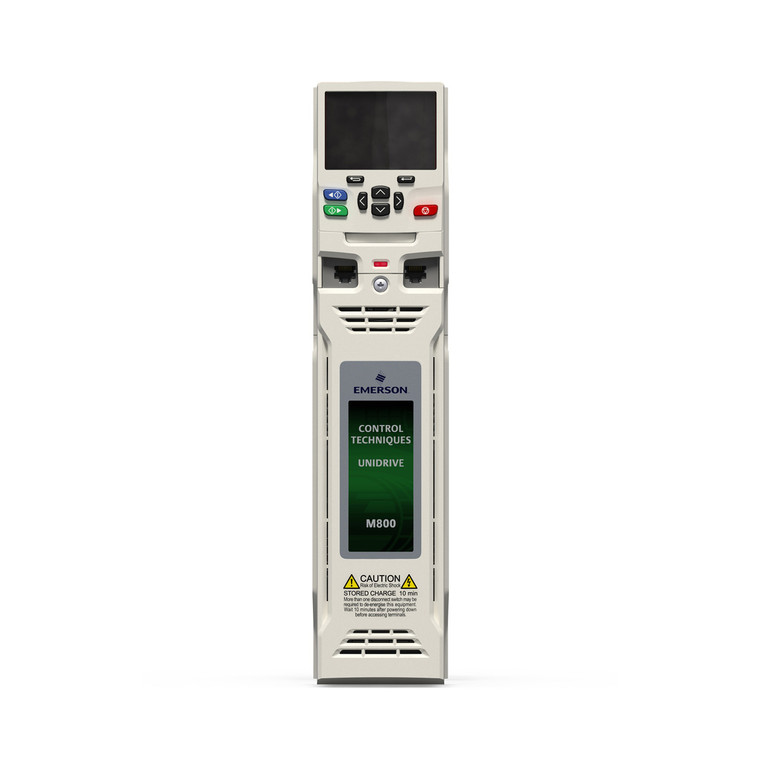

75HP 460V Control Techniques VFD, Inverter, AC Drive M800-07401000A

Brand: Control Techniques
Model: M800-07401000A
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Ultimate machine productivity through powerful networked, onboard automation and motion control
  • Ethernet communications with IEEE 1588 V2 network synchronization
  • Maximize machine productivity through shaft performance with any motor technology
  • Maximize throughput while protecting people and machinery, meeting modern machine safety requirements
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Series M800
Phase Three Phase
Rated Amps 100 A, 112 A
Enclosure Rating IP 20
Brand Control Techniques
Horsepower Rating 75 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 100 A
HP Rating @ 110% OL 75 HP
HP Rating @ 150% OL 75 HP
Amp Rating @ 110% OL 112 A
Amp Rating @ 150% OL 100 A
Model M800-07401000A
Height 21.9 in
Width 10.6 in
Depth 11 in
Product Information

Control Techniques M800 Series

The M800 and M810 deliver powerful advanced onboard machine control, encompassing a 1.5 axis motion controller, real-time drive-to-drive synchronization, high speed digital I/O and integrated safety features, greatly reducing the need for expensive external components. The M800 adds a powerful second onboard micro processor for high performance CODESYS based machine control. Comprehensive application programs are intuitively written using Machine Control Studio (based on the industry standard CODESYS environment) to build highly flexible and productive machines quickly. Typical applications include:

  • Speed and position control with onboard application software for gearing and ratio control
  • Winding (coilers)
  • Web handling
  • Metal cutting
  • Flying shear and many more

Highlights

  • Ultimate machine productivity through powerful networked, onboard automation and motion control
  • Ethernet communications with IEEE 1588 V2 network synchronization
  • Maximize machine productivity through shaft performance with any motor technology
  • Maximize throughput while protecting people and machinery, meeting modern machine safety requirements
