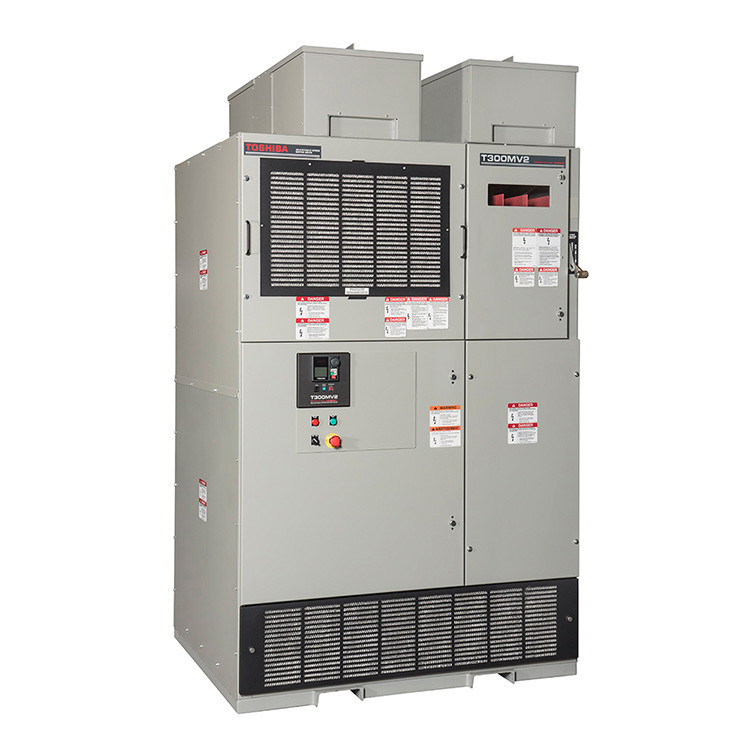

700HP 4160V Toshiba T300MV2 VFD, Inverter, AC Drive M3A44070SAA-1
Brand: TOSHIBA
Model: M3A44070SAA-1
Condition: New Surplus
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Constant Torque / Variable Torque | Variable Torque |
| Series | T300MV2 |
| Phase | Single Phase |
| Rated Amps | 87 A |
| Enclosure Rating | UL Type 1 |
| Brand | TOSHIBA |
| Horsepower Rating | 700 HP |
| Rated Voltage | 4160 V |
| Product Condition | New Surplus |
| Output Voltage | 4160 V |
| Output Amperage Rating | 87 A |
| HP Rating @ 110% OL | 700 HP |
| Amp Rating @ 110% OL | 87 A |
| Model | M3A44070SAA1 |
| Height | 103.7 in |
| Width | 60 in |
| Depth | 48 in |
Product Information
TOSHIBA T300MV2 Series
The T300MV2 4160V drive from Toshiba is a medium voltage adjustable speed drive with the most up-to-date digital control features. The MV2 system matches a high-speed processor with an expanded control interface, paired with trustworthy multi-level pulse width modulation (PMW) with neutral point clamping technology (NPC). This cutting-edge technology also includes the newest technology for safety, making the T300MV2 one of the safest products in the industry.
Standard Features
- Three Cables In, Three Cables Out
- Copper-Wound Input Isolation Transformer with 24-Pulse Harmonic Cancellation which Complies with IEEE 519-2014
- Higher True Power Factor (0.96) than Running Motors Across-the-Line
- Smaller Footprint Through Compact Power Modules, Lower Component Count, Standard?Copper-Wound Isolation Transformer, & Air-Cooling System
- Robust, High-Quality Medium Voltage IGBT Technology, & Control Components?
- Advanced Electronics to Reduce Component Count
- Additive Five-Level PWM Output Voltage with No Neutral Shift
