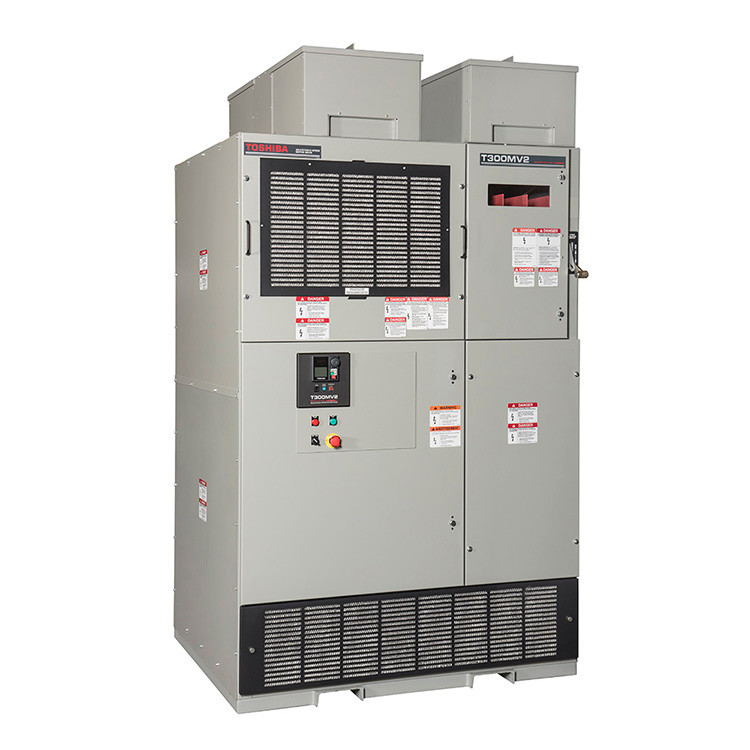

400HP 4160V Toshiba T300MV2 VFD, Inverter, AC Drive M3A44040SAA-1

Model: M3A44040SAA-1
Condition: New Surplus
0% of 100

Out of stock
Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Series T300MV2
Enclosure Rating UL Type 1
Horsepower Rating 400 HP
Rated Voltage 4160 V
Product Condition New Surplus
Output Voltage 4160 V
Output Amperage Rating 50 A
Rated Amps 50 A
HP Rating @ 110% OL 400 HP
Amp Rating @ 110% OL 50 A
Model M3A44040SAA1
Height 103.7 in
Width 48 in
Depth 48 in
Product Information

TOSHIBA T300MV2 Series

The T300MV2 4160V drive from Toshiba is a medium voltage adjustable speed drive with the most up-to-date digital control features. The MV2 system matches a high-speed processor with an expanded control interface, paired with trustworthy multi-level pulse width modulation (PMW) with neutral point clamping technology (NPC). This cutting-edge technology also includes the newest technology for safety, making the T300MV2 one of the safest products in the industry.

Standard Features

  • Three Cables In, Three Cables Out
  • Copper-Wound Input Isolation Transformer with 24-Pulse Harmonic Cancellation which Complies with IEEE 519-2014
  • Higher True Power Factor (0.96) than Running Motors Across-the-Line
  • Smaller Footprint Through Compact Power Modules, Lower Component Count, Standard Copper-Wound Isolation Transformer, & Air-Cooling System
  • Robust, High-Quality Medium Voltage IGBT Technology, & Control Components
  • Advanced Electronics to Reduce Component Count
  • Additive Five-Level PWM Output Voltage with No Neutral Shift
