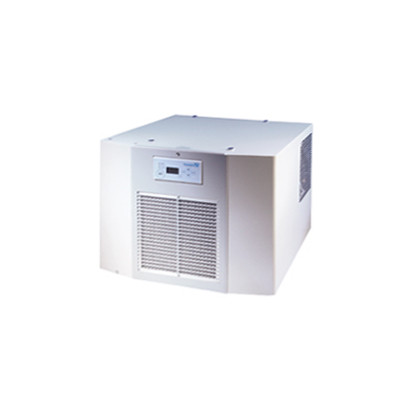

5500-7000 BTU/h, NEMA TYPE 12 Pfannenberg Cooling Unit, 13216432055 (13216432055)

Brand:
Pfannenberg
Model:
13216432055
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
13216432055
Brand:
Pfannenberg
Product Condition:
New
Phase Rating:
3 Phase Input - 3 Phase Output
Refrigerant Type:
R-134a
Enclosure Rating:
UL Type 12
Phase:
Three Phase
Series:
DTT
Height:
17.10 in
Width:
23.40 in
Depth:
19.50 in

Product Information

Pfannenberg DTT Series

DTT Top Mounted

Using the best available components and design tools allows the DTT Top Mounted Cooling Units to have high reliability. Due to a patented condensate management system, the DTT prevents condensate from penetrating the enclosure. The very small installation size also means that you can install your electrical enclosures in a row to save space.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTT

Model
13216432055

Condition
New

Cooling Capacity (BTU/h)
5500-7000

95/95 Rating (BTU/h)
6820

Nominal Current
3A

Starting Current
3.3A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA TYPE 12

Construction Material
RAL7035 Light Gray

Refrigerant Type
R134a

Ambient Temp. Range
15-55° C

Filter Included
No

Dimensions
Height: 17.10 in
Width: 23.40 in
Depth: 19.50 in
