900-1300 BTU/h, NEMA TYPE 12 Pfannenberg Cooling Unit, 13383141251 (13383141251)

900-1300 BTU/h, NEMA TYPE 12 Pfannenberg Cooling Unit, 13383141251 (13383141251)

Brand:
Pfannenberg
Model:
13383141251
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

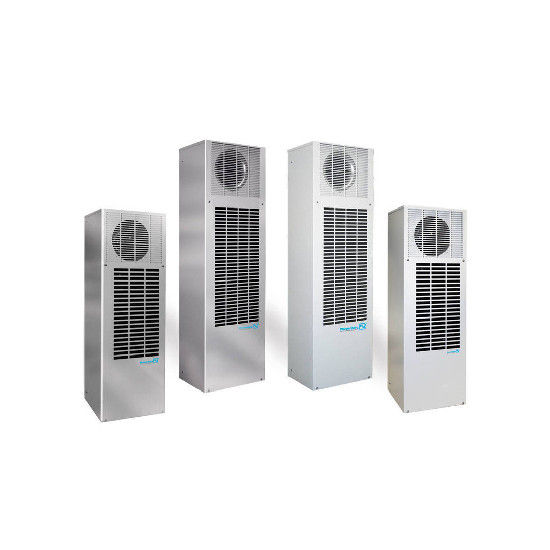

Pfannenberg DTS Series

Indoor NEMA Type 12 Side Mount Cooling Units

Pfannenberg NEMA Type 12 Side Mount Cooling units are designed to be relatively maintenance free with additional options and features for special applications. The wide condenser fin spacing allows for less maintenance and quick cleaning, and the backward curved impeller fans enable the cooling unit to operate longer without services. With its compact design, the Pfannenberg Side Mount Cooling unit is ideal for a variety of small enclosures and also hot spot cooling for larger enclosures.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS

Model
13383141251

Condition
New

Cooling Capacity (BTU/h)
900-1300

95/95 Rating (BTU/h)
1187

Nominal Current
1.2A

Starting Current
3.5A

Input
1-Phase
207-253V

Output
1-Phase
207-253V

Enclosure
NEMA TYPE 12

Construction Material
ANSI 61 Gray

Refrigerant Type
R134a

Ambient Temp. Range
15-55° C

Filter Included
No

Dimensions
Height: 15.50 in
Width: 7.00 in
Depth: 7.75 in
