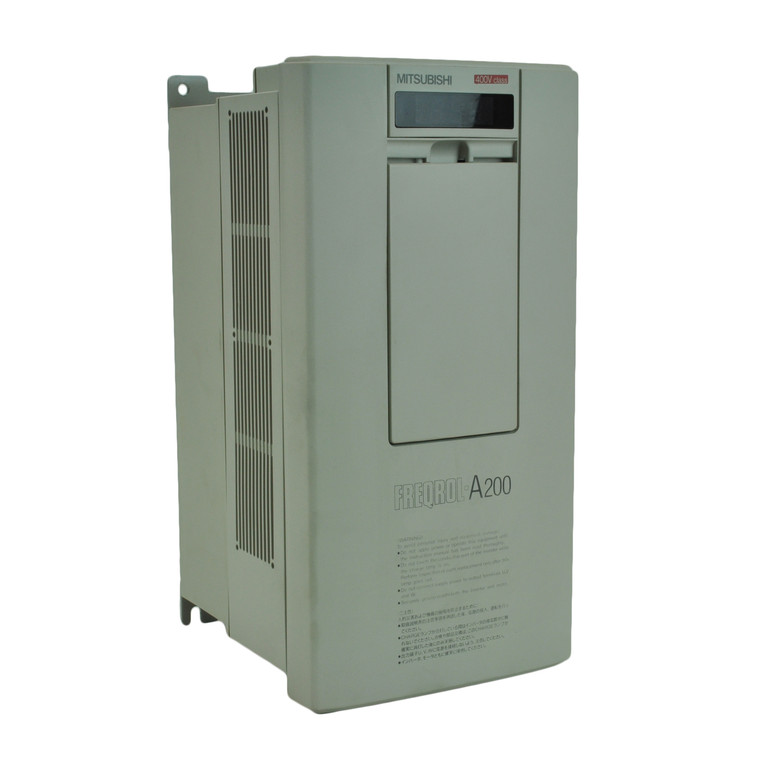

7.5 HP & 10HP 230V Mitsubishi VFD, Inverter, AC Drive FR-A220-5.5K-UL

Brand: MITSUBISHI
Model: FR-A220-5.5K-UL
Condition: New with Defects or Obsolete
Rating:
0% of 100

Out of stock

Highlights

Drive Details

Manufacturer
Mitsubishi

Series
A200

Model
FR-A220-5.5K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
CT: 7.5 HP
VT: 10 HP

Maximum Amps
CT: 24 A
VT: 28 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 11.81 in
Width: 8.66 in
Depth: 7.48 in

Enclosure
IP20

Technical Specifications
Brand MITSUBISHI
Horsepower Rating 7.5 HP, 10 HP
Rated Voltage 230 V
Phase Three Phase
Series A200
Output Voltage 230 V
Product Condition New with Defects or Obsolete
Enclosure Rating IP 20
Output Amperage Rating 24 A
Phase Rating 3 Phase Input - 3 Phase Output
Rated Amps 24 A, 28 A
Model FR-A220-5.5K-UL
Amp Rating @ 150% OL 24 A
Amp Rating @ 110% OL 28 A
Amp Rating @ 120% OL 28 A
HP Rating @ 120% OL 10 HP
HP Rating @ 150% OL 7.5 HP
Product Information

MITSUBISHI A200 Series

Mitsubishi A200 Series Variable Frequency Drive

Highlights

Drive Details

Manufacturer
Mitsubishi

Series
A200

Model
FR-A220-5.5K-UL

Condition
Obsolete

Constant/Variable Torque
CT/VT

Horse Power
CT: 7.5 HP
VT: 10 HP

Maximum Amps
CT: 24 A
VT: 28 A

Input
3-Phase
200-230V

Output
3-Phase
200-230V

Dimensions
Height: 11.81 in
Width: 8.66 in
Depth: 7.48 in

Enclosure
IP20

Standard Features

  • High torque at low speeds. Magnetic flux vector control provides up to 200-300% starting torque.
  • Tripless operation. Selectable stall prevention function protects against overcurrent tripping.
  • Optional easy-to-use parameter unit. Parameter units are used for operation control, reading and writing parameters, and drive monitoring.
  • Quiet operation. Intelligent power module (IPM) incorporates IGBT transistor technology for quiet motor operation.
  • High functionality. Software configuration with many adjustable parameters allows tailoring the drive to a wide variety of applications.
