Technical Specifications
Model:
LSLV0370S100-4CONDS
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
S100
Horsepower Rating:
50 HP
Horsepower Rating:
60 HP
HP Rating @ 120% OL:
60 HP
HP Rating @ 150% OL:
50 HP
Rated Amps:
75 A
Rated Amps:
91 A
Amp Rating @ 120% OL:
91 A
Amp Rating @ 150% OL:
75 A
Rated Input Frequency:
60 Hz
Output Voltage:
480 V
Output Amperage Rating:
75 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Rated Voltage:
480 V
Height:
20.08 in
Width:
12.80 in
Depth:
7.56 in
Product Information

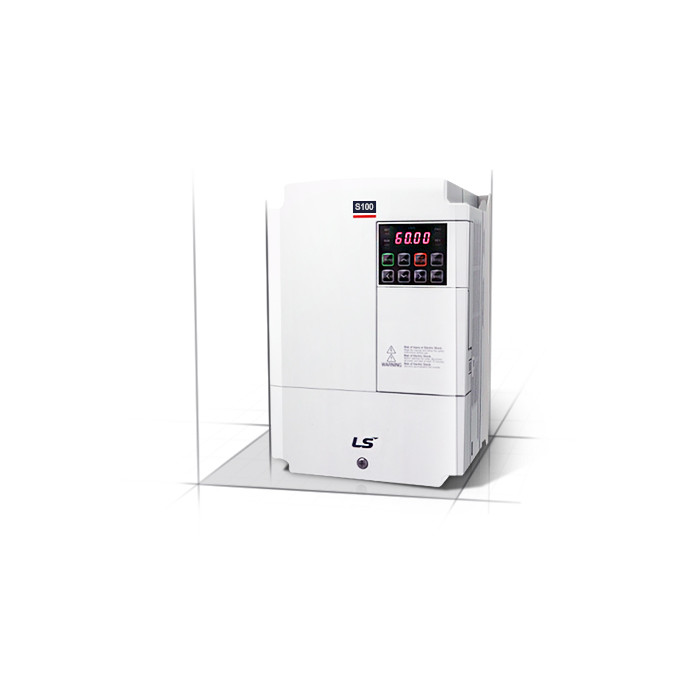

LS S100 Series
The LS S100 VFD is a standard, industrial drive that helps in a wide range of applications. With options for single- and three-phase input, as well as options for IP66 ratings, the S100 has options for most situations.
