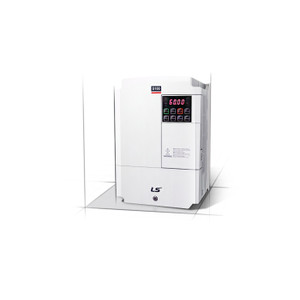

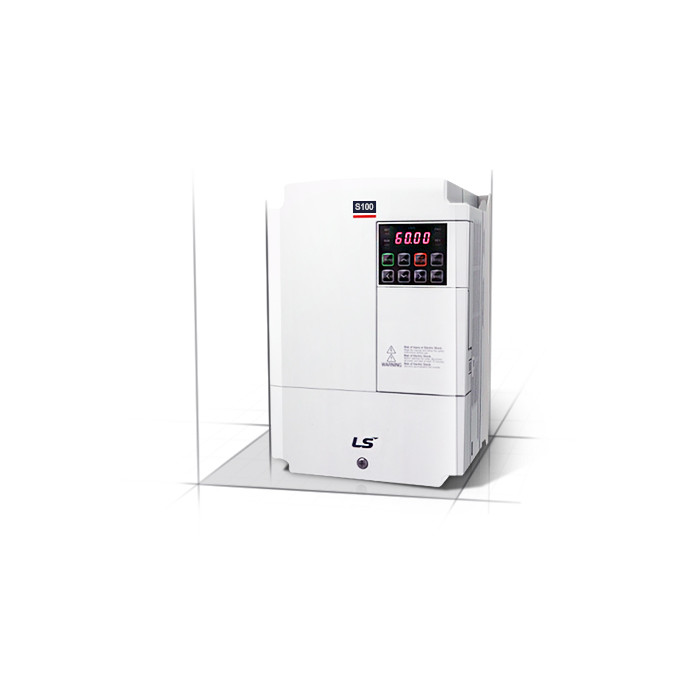

50HP & 40HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0300S100-4CONDS (6031006000)

50HP & 40HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0300S100-4CONDS (6031006000)

Brand:
LS
Model:
6031006000
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $4,131.27
Online Price: $3,057.14
Adding to cart… The item has been added
  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option
Write a Review

Technical Specifications

Model:
LSLV0300S100-4CONDS
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
S100
Horsepower Rating:
40 HP
Horsepower Rating:
50 HP
HP Rating @ 120% OL:
50 HP
HP Rating @ 150% OL:
40 HP
Rated Amps:
61 A
Rated Amps:
75 A
Amp Rating @ 120% OL:
75 A
Amp Rating @ 150% OL:
61 A
Rated Input Frequency:
60 Hz
Output Voltage:
480 V
Output Amperage Rating:
61 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Rated Voltage:
480 V
Height:
17.72 in
Width:
10.83 in
Depth:
7.56 in

Product Information

LS S100 Series

The LS S100 VFD is a standard, industrial drive that helps in a wide range of applications. With options for single- and three-phase input, as well as options for IP66 ratings, the S100 has options for most situations.
