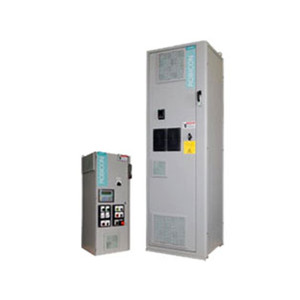

60HP 460V Siemens Robicon W120 Industrial Control Panel, Motor Control Panel, VFD Box, 6SL3710-1BJ29-0AR0 (6SL3710-1BJ29-0AR0)

60HP 460V Siemens Robicon W120 Industrial Control Panel, Motor Control Panel, VFD Box, 6SL3710-1BJ29-0AR0 (6SL3710-1BJ29-0AR0)

Brand:
SIEMENS
Model:
6SL3710-1BJ29-0AR0
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • NEMA 1 enclosure, with blower
  • UL listing per UL508C
  • Short circuit current rating (SCCR) 65kA at 480V AC
  • Circuit breaker disconnect with flange mount operator handle, mechanically interlocked with the enclosure door
  • Input line reactor
  • Intelligent operator panel (IOP), door mounted for easy start-up operation
  • Windows based STARTER software-common to all models of the SINAMICS family
    • Write a Review

    Technical Specifications

    Product Information

    SIEMENS Robicon W120 Series

    ROBICON W120 Product Summary

    ROBICON W120 6-pulse drives from Siemens are the result of a combination of Siemens SINAMICS and ROBICON technology. The W120 drives are now available after over 20 years of quality and expertise to produce an exceptional drive. The W120 has wall mount or floor standing options.

    Features

    Standard Features

    Panel Details

    Manufacturer
    Siemens

    Series
    Robicon W120

    Model
    6SL37101BJ290AR0

    Condition
    New
    1 Year Manufacture Warranty

    Constant/Variable Torque
    CT/VT

    Horsepower?
    LO: 60 HP
    HO: 50 HP

    Maximum Amps?
    LO: 80 A
    HO: 75 A

    Input
    3 Phase
    460-480V 50Hz/60Hz

    Output
    3 Phase
    460-480V 50Hz/60Hz

    Enclosure Rating
    NEMA 1

    Features
    Wall mountable
    Power Module PM 240(standard 6-pulse)
    Input line reactor
    Circuit breaker disconnect
    Integral braking chopper
    Other options available

    Frame Size
    E

    Dimensions
    Height: 60 in
    Width: 26 in
    Depth: 20 in

    Download Brochure
