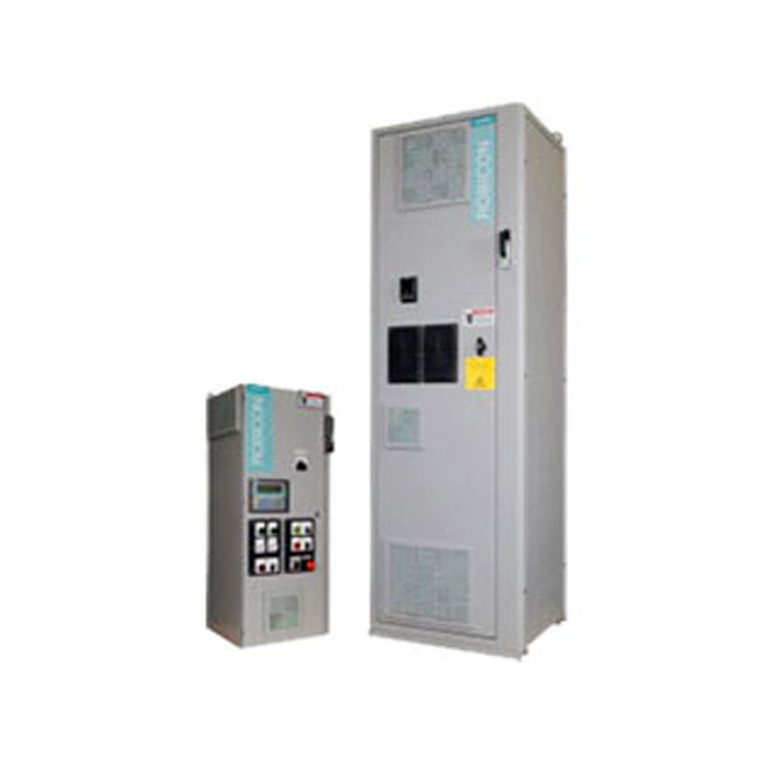

150HP 460V Siemens Robicon W120 Industrial Control Panel, Motor Control Panel, VFD Box (6SL3710-1BJ32-0AR0)

150HP 460V Siemens Robicon W120 Industrial Control Panel, Motor Control Panel, VFD Box (6SL3710-1BJ32-0AR0)

Brand:
SIEMENS
Model:
6SL3710-1BJ32-0AR0
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • NEMA 1 enclosure, with blower
  • UL listing per UL508C
  • Short circuit current rating (SCCR) 65kA at 480V AC
  • Circuit breaker disconnect with flange mount operator handle, mechanically interlocked with the enclosure door
  • Input line reactor
  • Intelligent operator panel (IOP), door mounted for easy start-up operation
  • Windows based STARTER software-common to all models of the SINAMICS family
Write a Review

Technical Specifications

Product Information

SIEMENS Robicon W120 Series

ROBICON W120 Product Summary

ROBICON W120 6-pulse drives from Siemens are the result of a combination of Siemens SINAMICS and ROBICON technology. The W120 drives are now available after over 20 years of quality and expertise to produce an exceptional drive. The W120 has wall mount or floor standing options.

\r\n

Features

Panel Details

Manufacturer
Siemens

Series
Robicon W120

Model
6SL37101BJ320AR0

Condition
New
1 Year Manufacture Warranty

Constant/Variable Torque
CT/VT

Horsepower
LO: 150 HP
HO: 125 HP

Maximum Amps
LO: 186 A
HO: 178 A

Input
3 Phase
460-480V 50Hz/60Hz

Output
3 Phase
460-480V 50Hz/60Hz

Enclosure Rating
NEMA 1

Features
Floor standing
Power Module PM 240 (standard 6-pulse)
Input line reactor
Circuit breaker disconnect
Integral braking chopper
Other options available

Frame Size
F+

Dimensions
Height: 94 in
Width: 30 in
Depth: 24 in

Download Brochure
