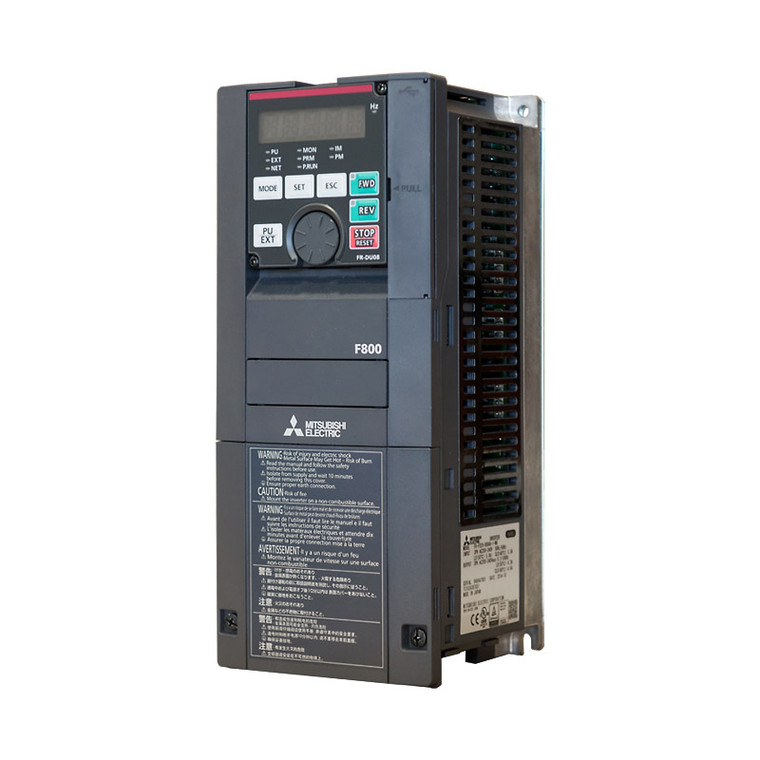

60HP 230V Mitsubishi VFD, INVERTER, AC DRIVE FR-F820-01870-3-60

Brand: MITSUBISHI
Model: FR-F820-01870-3-60
Condition: New
Rating:
0% of 100

Out of stock
List Price $6,835.00 Online Price $5,126.25

Highlights

  • NEMA 1 / UL-1 Rated
  • Built-in Filter
  • Drive to Drive Communications
  • Optimum Excitation Control
  • 3 Programmable Skip Frequencies
  • Drive Settings can be Uploaded or Downloaded
  • Real-time Clock
  • Bi-Directional Coasting Motor Restart
  • Advanced PID Control Features
  • UL-Approved Rating
  • Out-of-Range Warning System
  • Automatic IP Address Detection
  • Remote Operation
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Constant Torque / Variable Torque Variable Torque
Series F800
Phase Three Phase
Rated Amps 170 A, 187 A
Enclosure Rating IP 00
Brand MITSUBISHI
Horsepower Rating 60 HP
Rated Voltage 230 V
Product Condition New
Output Voltage 230 V
Output Amperage Rating 187 A
HP Rating @ 110% OL 60 HP
HP Rating @ 120% OL 60 HP
Amp Rating @ 110% OL 187 A
Amp Rating @ 120% OL 170 A
Model FR-F820-01870-3-60
Height 21.67 in
Width 17.13 in
Depth 9.84 in
Product Information

MITSUBISHI F800 Series

The F800 series VFD is a fan and pump control drive designated for optimal energy savings. Whether being used in an industrial setting or in integration with an HVAC system, the F800 series drive can be used a s a cost-effective application for controlling constant torque loads.

Highlights

  • NEMA 1 / UL-1 Rated
  • Built-in Filter
  • Drive to Drive Communications
  • Optimum Excitation Control
  • 3 Programmable Skip Frequencies
  • Drive Settings can be Uploaded or Downloaded
  • Real-time Clock
  • Bi-Directional Coasting Motor Restart
  • Advanced PID Control Features
  • UL-Approved Rating
  • Out-of-Range Warning System
  • Automatic IP Address Detection
  • Remote Operation
