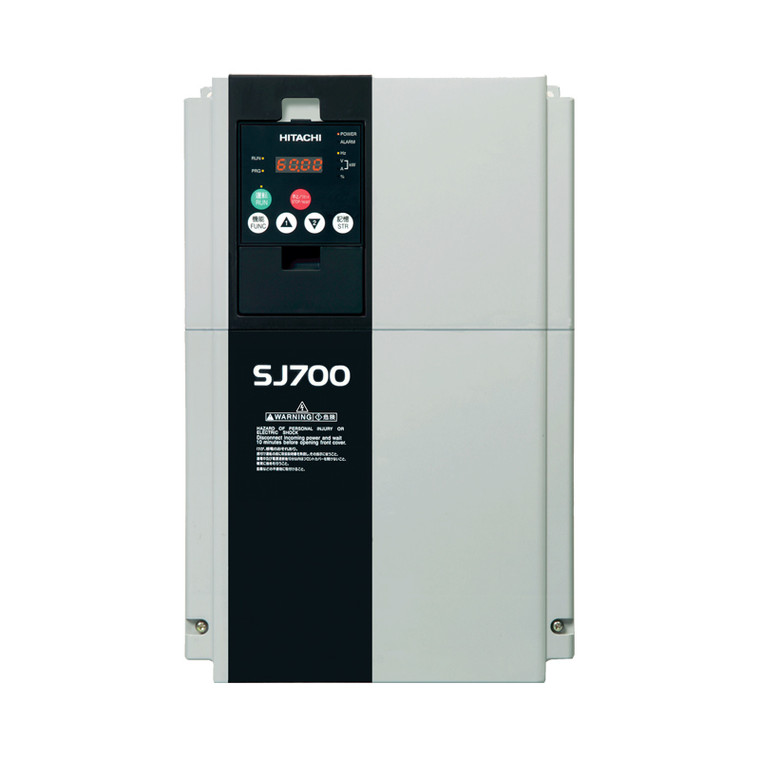

50HP 230V Hitachi SJ700D VFD, Inverter, AC Drive SJ700D-370LFUF3

Brand: HITACHI
Model: SJ700D-370LFUF3
Condition: New
Rating:
0% of 100

Out of stock
$3,151.50

Highlights

  • Advanced Sensorless Vector Control and Auto Tuning
  • Easy Sequence (EzSQ) software – internal PLC-like controller
  • High starting torque at low speeds (150% at 0.3Hz)
  • Full Vector Control with optional Feedback Board
  • Micro Surge Voltage suppress function
  • Improved and simplified auto-tuning
  • Built-in PLC type programming functions
  • Built in Modbus/RTU communications
  • Ratings:
    • 1/2 hp to 75 hp, 230 V, 3 phase
    • 1 to 600 hp, 460V, 3 phase
Compare with similar items

Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series SJ700D
Enclosure Rating IP 20
Brand HITACHI
Horsepower Rating 50 HP, 60 HP
Rated Voltage 230 V
Product Condition New
Output Voltage 230 V
Output Amperage Rating 145 A
Rated Amps 145 A
HP Rating @ 120% OL 60 HP
HP Rating @ 150% OL 50 HP
Amp Rating @ 120% OL 169 A
Amp Rating @ 150% OL 145 A
Model SJ700D-370LFUF3
Height 21.65 in
Width 15.35 in
Depth 9.84 in
Product Information

HITACHI SJ700D Series

Hitachi industrial SJ700D Series AC Variable Speed Drives and inverters are the first off-the-shelf units with integral easy sequence programmable functionality (EzSQ) as a standard feature. The SJ700D Series inverters can handle complex applications with ease because of the new Easy Sequence (EzSQ) programming software, precise positioning, and safe stop according to EN954-1. Using its improved sensorless vector (SLV) control algorithm, the SJ700D can develop over 200% starting torque at 0.3 Hz and 150% torque at 0 Hz.

Highlights

  • Advanced Sensorless Vector Control and Auto Tuning
  • Easy Sequence (EzSQ) software – internal PLC-like controller
  • High starting torque at low speeds (150% at 0.3Hz)
  • Full Vector Control with optional Feedback Board
  • Micro Surge Voltage suppress function
  • Improved and simplified auto-tuning
  • Built-in PLC type programming functions
  • Built in Modbus/RTU communications
  • Ratings:
    • 1/2 hp to 75 hp, 230 V, 3 phase
    • 1 to 600 hp, 460V, 3 phase
