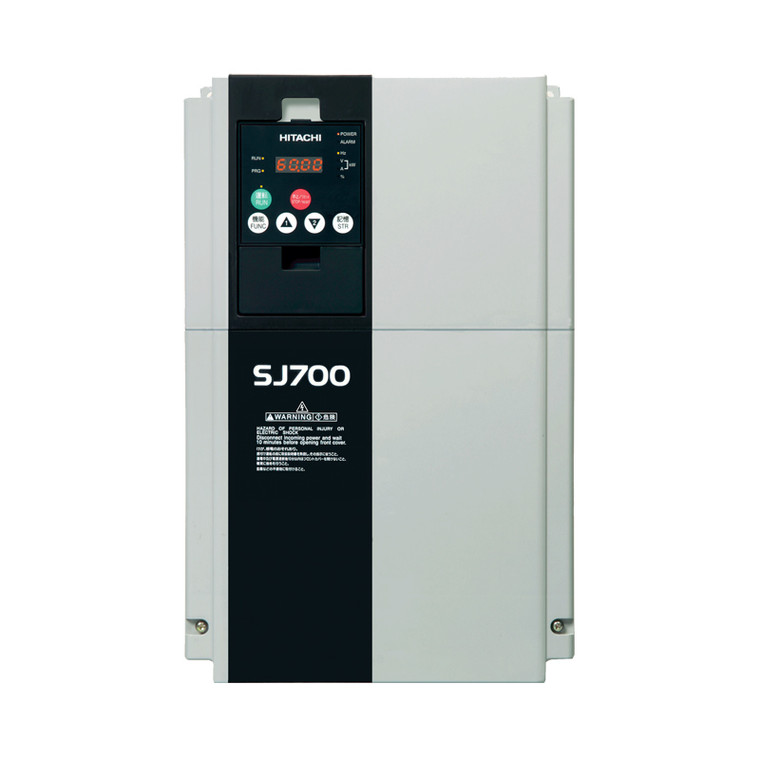

7.5HP 230V Hitachi SJ700D VFD, Inverter, AC Drive SJ700D-055LFUF3 (SJ700D-055LFUF3)

Brand:
HITACHI
Model:
SJ700D-055LFUF3
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $653.40
Adding to cart… The item has been added
  • Advanced Sensorless Vector Control and Auto Tuning
  • Easy Sequence (EzSQ) software – internal PLC-like controller
  • High starting torque at low speeds (150% at 0.3Hz)
  • Full Vector Control with optional Feedback Board
  • Micro Surge Voltage suppress function
  • Improved and simplified auto-tuning
  • Built-in PLC type programming functions
  • Built in Modbus/RTU communications
  • Ratings:
    • 1/2 hp to 75 hp, 230 V, 3 phase
    • 1 to 600 hp, 460V, 3 phase

Technical Specifications

Model:
SJ700D-055LFUF3
Brand:
HITACHI
Product Condition:
New
Horsepower Rating:
7.5 HP
Horsepower Rating:
10 HP
HP Rating @ 120% OL:
10 HP
HP Rating @ 150% OL:
7.5 HP
Rated Amps:
24 A
Amp Rating @ 120% OL:
30 A
Amp Rating @ 150% OL:
24 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
24 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
SJ700D
Rated Amps:
30 A
Height:
10.27 in
Width:
8.27 in
Depth:
6.69 in

Product Information

HITACHI SJ700D Series

Hitachi industrial SJ700D Series AC Variable Speed Drives and inverters are the first off-the-shelf units with integral easy sequence programmable functionality (EzSQ) as a standard feature. The SJ700D Series inverters can handle complex applications with ease because of the new Easy Sequence (EzSQ) programming software, precise positioning, and safe stop according to EN954-1. Using its improved sensorless vector (SLV) control algorithm, the SJ700D can develop over 200% starting torque at 0.3 Hz and 150% torque at 0 Hz.
