Technical Specifications
Model:
FR-F840-06100-3-60
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
450 HP
Horsepower Rating:
500 HP
HP Rating @ 110% OL:
500 HP
HP Rating @ 120% OL:
450 HP
Rated Amps:
547 A
Amp Rating @ 110% OL:
610 A
Amp Rating @ 120% OL:
547 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
610 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
IP 00
Height:
39.76 in
Width:
26.77 in
Depth:
14.96 in
Product Information

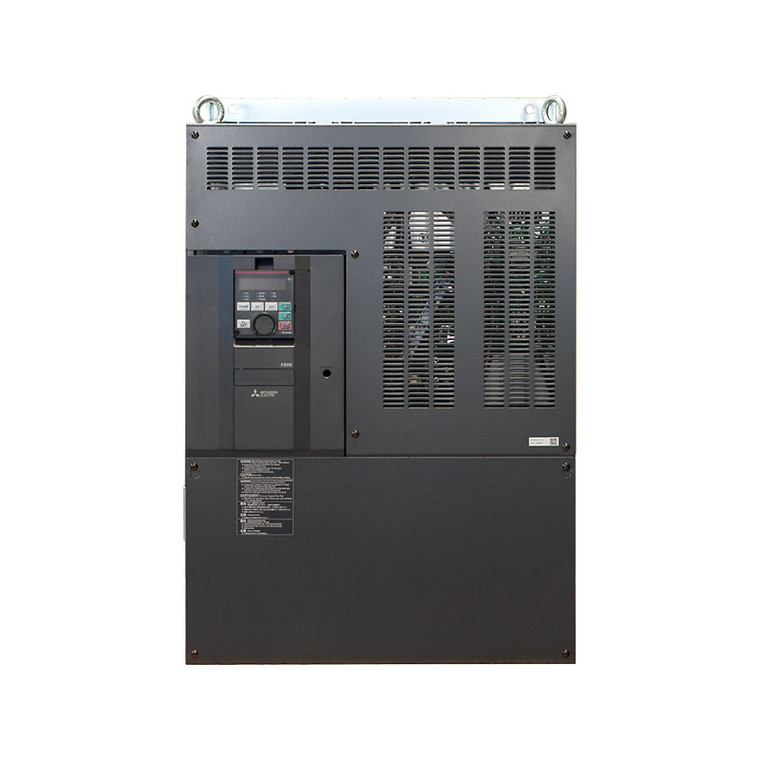

MITSUBISHI F800 Series
The F800 series VFD is a fan and pump control drive designated for optimal energy savings. Whether being used in an industrial setting or in integration with an HVAC system, the F800 series drive can be used a s a cost-effective application for controlling constant torque loads.
Highlights
- NEMA 1 / UL-1 Rated
- Built-in Filter
- Drive to Drive Communications
- Optimum Excitation Control
- 3 Programmable Skip Frequencies
- Drive Settings can be Uploaded or Downloaded
- Real-time Clock
- Bi-Directional Coasting Motor Restart
- Advanced PID Control Features
- UL-Approved Rating
- Out-of-Range Warning System
- Automatic IP Address Detection
- Remote Operation
