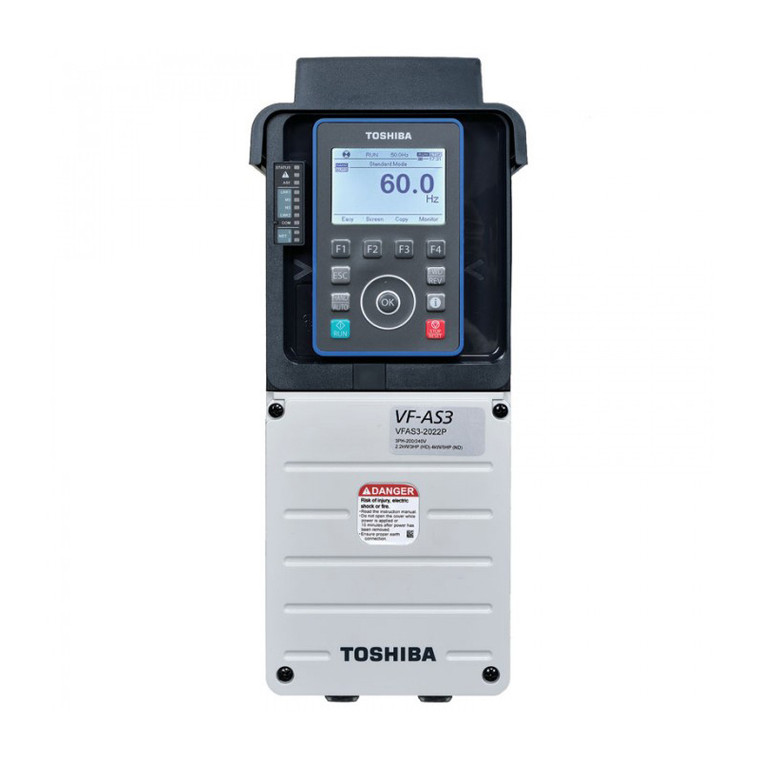

400HP 460V Toshiba AS3 VFD, Inverter, AC Drive VFAS3-4200KPC (VFAS3-4200KPC)

400HP 460V Toshiba AS3 VFD, Inverter, AC Drive VFAS3-4200KPC (VFAS3-4200KPC)

Brand:
TOSHIBA
Model:
VFAS3-4200KPC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$27,300.00
Online Price: $21,840.00
Adding to cart… The item has been added
  • Dual Rating Through Parameter Change (Heavy Duty and Normal Duty)
  • Heavy Duty 150% Overload for 60 Seconds
  • Normal Duty 120% Overload for 60 Seconds
  • Eight Programmable Digital Inputs
  • Three Programmable Digital Outputs: One Form-C Relay & Two Form-A Dry Contact Relays
  • Three Programmable Analog Inputs: One 4 to 20mA, One 0 to 10 VDC, & One +10 VDC
  • Two Programmable Analog Outputs: Both 4 to 20mA or 0 to 10 VDC
  • Embedded STO Safety Terminal Compliant with IEC 61800-5-2 and SIL3 level in IEC 61508
  • Two-Wire/Four-Wire RS485
  • Built-in Dual Port Ethernet IP
  • Embedded Web Server
  • Real-Time Clock for Past Trip Monitoring or Calendar Functionality
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
Write a Review

Technical Specifications

Product Information

TOSHIBA AS3 Series

The AS3 adjustable speed drive from Toshiba is manufactured with an emphasis on standardized communications, permitting end-users to use real-time data and personalized controls to enhance overall system performance.

Standard Features

  • NEMA 1 up to 100 HP HD (125 HP ND) 460V
  • Ambient Temperature: 14° to 122°F (-10° to +50°C) or 140°F (+60°C) with Derate
  • Altitude: Up to 1000 Meters Without Derate
  • Humidity: 95% Non-Condensing
  • Advanced LCD Keypad with Capacitive Touch Wheel for Navigating and Programming
  • Save, Restore & Clone Multiple Drive Settings
  • Real Time Clock for Past Trip Monitoring or Calendar Functionality
  • Built-Dynamic Braking Drive Circuit up to 100 HP HD (125 HP ND) 460V
  • All Models Include DC Link Reactor
