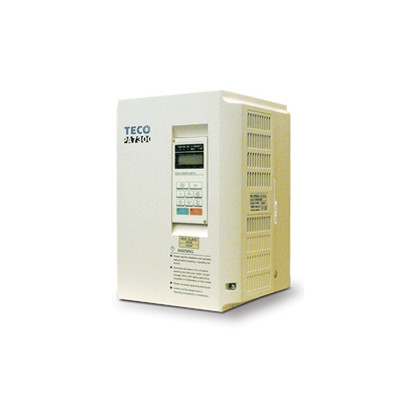

400HP 460V Teco VFD, Inverter, AC Drive PA7300-4400-N1 (PA7300-4400-N1)

400HP 460V Teco VFD, Inverter, AC Drive PA7300-4400-N1 (PA7300-4400-N1)

Brand:
TECO
Model:
PA7300-4400-N1
Condition:
New with Defects or Obsolete
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • PID and Auto Energy Saving Functions.
  • Input Phase Loss and Output Phase Loss Protection.
  • LCD Keypad can be used to copy parameter settings from one Inverter to another.
  • Output Common Mode Choke Built-in on on 230V 30 HP – 125 HP and 460V 40 HP – 200 HP ratings.
  • RS-485 Communication Cards (option)
  • 3 Analog Inputs (0-10V x 2, 4-20mA)
  • 2 Analog Outputs (0-10V x 2, 4 -20mA option)
  • UL, cUL, CE
Write a Review

Technical Specifications

Model:
PA7300-4400-N1
Brand:
TECO
Product Condition:
New with Defects or Obsolete
Horsepower Rating:
400 HP
HP Rating @ 110% OL:
400 HP
Rated Amps:
585 A
Amp Rating @ 110% OL:
585 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
585 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
UL Type 1
Series:
PA7300
Height:
52.36 in
Width:
28.74 in
Depth:
15.04 in

Product Information

TECO PA7300 Series

The PA 7300 Fan and Pump AC Inverter is available in a range horsepower from 5 – 500 with several features and functions.
