3HP 575V WEG VFD, Inverter, AC Drive CFW080043THN4A1Z (CFW080043THN4A1Z)
0 Customer Reviews
Write a Review
WEG

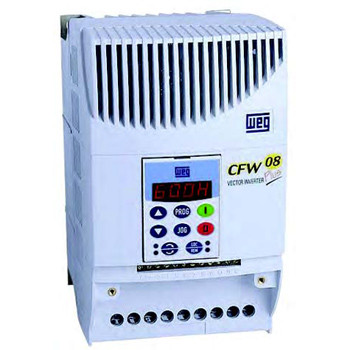

3HP 575V WEG VFD, Inverter, AC Drive CFW080043THN4A1Z (CFW080043THN4A1Z)
Technical Specifications
Product Information
WEG Series
Drive Details
Manufacturer
WEG
Series
CFW08
Model
CFW080043THN4A1Z
Condition
New
Constant/Variable Torque
CT/VT
Horse Power
3 HP
Maximum Amps
4.3 A
Input
3-Phase
575V
Output
3-Phase
575V
Dimensions
Height: 13.40 in
Width: 8.50 in
Depth: 8.50 in
Enclosure
NEMA 4X
WEG CFW08 Series Compact Variable Frequency Drive (VFD)
The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.
Features:- V/Hz and Sensorless Vector Control
- NEMA 1 Enclosure
- Single and Three-phase input voltage
- 200-240V or 380-480V input voltage
- 150% current overload capacity
- 16 bit DSP controlled PWM output
- 2.5 / 5 / 10 / 15 kHz adjustable switching frequency
- Four isolated programmable digital inputs
- Two programmable relay outputs
- Two isolated programmable analog inputs
- Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
- Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
- Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
- Ambient: 32F (0C) to 104F (40C), 3300ft (1000m) altitude, 90% humidity, non-condensing
