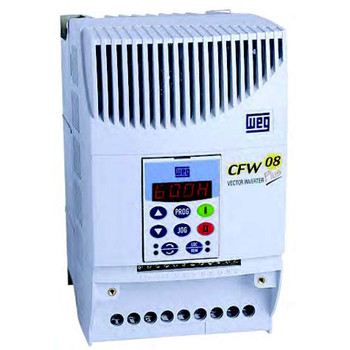

10HP 575V WEG VFD, Inverter, AC Drive CFW080120THN4A1Z (CFW080120THN4A1Z)

Name: 10HP 575V WEG VFD, Inverter, AC Drive CFW080120THN4A1Z (CFW080120THN4A1Z)
Brand: WEG
SKU: CFW080120THN4A1Z
Price: 2268.6 USD
Availability: InStock

Brand:

WEG

Model:

CFW080120THN4A1Z

Condition:

New

0 Customer Reviews

Add Technical Support: Optional

None
60-min Tech Support

Out Of Stock

$2,388.00

Online Price: $2,268.60

Adding to cart… The item has been added

Technical Specifications

Product Information

WEG Series

Drive Details

Manufacturer
WEG

Series
CFW08

Model
CFW080120THN4A1Z

Condition
New

Constant/Variable Torque
CT/VT

Horse Power
10 HP

Maximum Amps
12 A

Input
3-Phase
575V

Output
3-Phase
575V

Dimensions
Height: 13.40 in
Width: 8.50 in
Depth: 8.50 in

Enclosure
NEMA 4X

Download the Manual/Brochure

WEG CFW08 Series Compact Variable Frequency Drive (VFD)

The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.

Features:

V/Hz and Sensorless Vector Control
NEMA 1 Enclosure
Single and Three-phase input voltage
200-240V or 380-480V input voltage
150% current overload capacity
16 bit DSP controlled PWM output
2.5 / 5 / 10 / 15 kHz adjustable switching frequency
Four isolated programmable digital inputs
Two programmable relay outputs
Two isolated programmable analog inputs
Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
Ambient: 32F (0C) to 104F (40C), 3300ft (1000m) altitude, 90% humidity, non-condensing
