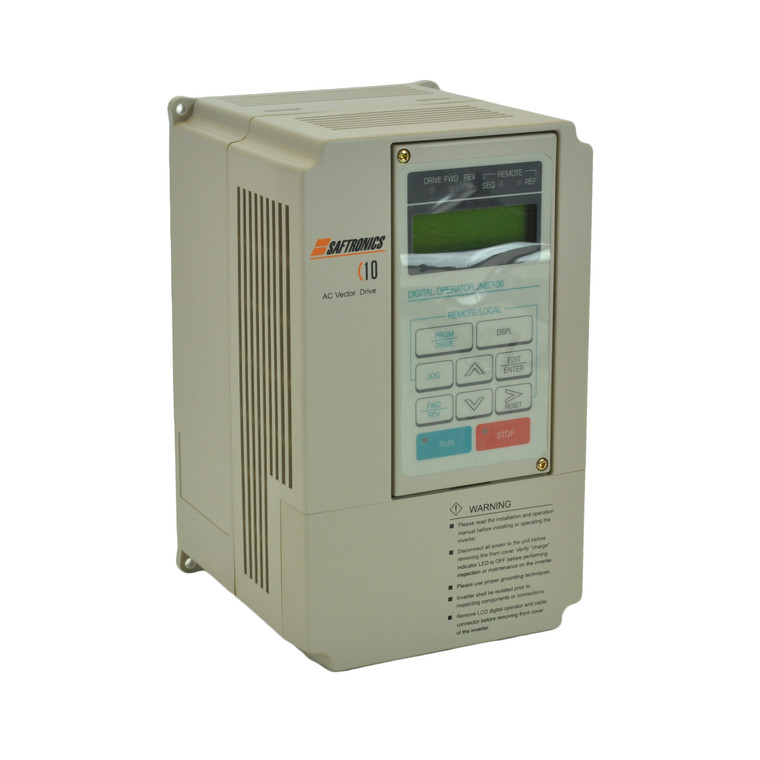

3HP 460V Saftronics VFD, Inverter, AC Drive C104003-1F

Brand: Saftronics
Model: C104003-1F
Condition: New Surplus
0% of 100

Out of stock
Compare with similar items

Technical Specifications
Constant Torque / Variable Torque Variable Torque
Phase Rating 3 Phase Input - 3 Phase Output
Series C10
Phase Three Phase
Rated Amps 4.8 A
Enclosure Rating UL Type 1
Brand Saftronics
Horsepower Rating 3 HP
Rated Voltage 460 V
Product Condition New Surplus
Output Voltage 460 V
Output Amperage Rating 4.8 A
HP Rating @ 110% OL 3 HP
HP Rating @ 150% OL 3 HP
Amp Rating @ 110% OL 4.9 A
Amp Rating @ 150% OL 4.8 A
Model C104003-1F
Height 5.51 in
Width 11 in
Depth 6.95 in
Product Information

Saftronics C10 Series

When versatility is needed across a range of customized OEM applications, the C10 series can be modified and personalized to your unique application using its Onboard Application Software. The C10 series drive has a strong set of standard attributes that are ideal for industrial situations.

Standard Features

  • 400Hz maximum output frequency
  • 0.5% Speed control accuracy
  • Overload protection of 150% for up to 1 minute
  • 3 Programmable analog inputs
  • 2 Programmable analog outputs
  • 8 Digital inputs (sink or source)
  • 2 or 3 wire control
  • 3 digital outputs
  • 16 preset speeds
  • Speed search
  • RS-485 Modbus RTU
  • DC injection baking
  • Over/under torque detection
  • Power loss ride-thru
  • 33 monitoring functions
  • Fault history (up to 4)
  • Onboard application software
  • Sensorless wector, V/Hz, and V/Hz with PG feedback control modes
  • Digital Pulse Train Input (0 to 32 KHz)
  • Motor auto tuning for optimum motor performance
  • PID Mode with sleep function
  • Graphical LCD operator interface with copy function
  • Built-in braking transistor
