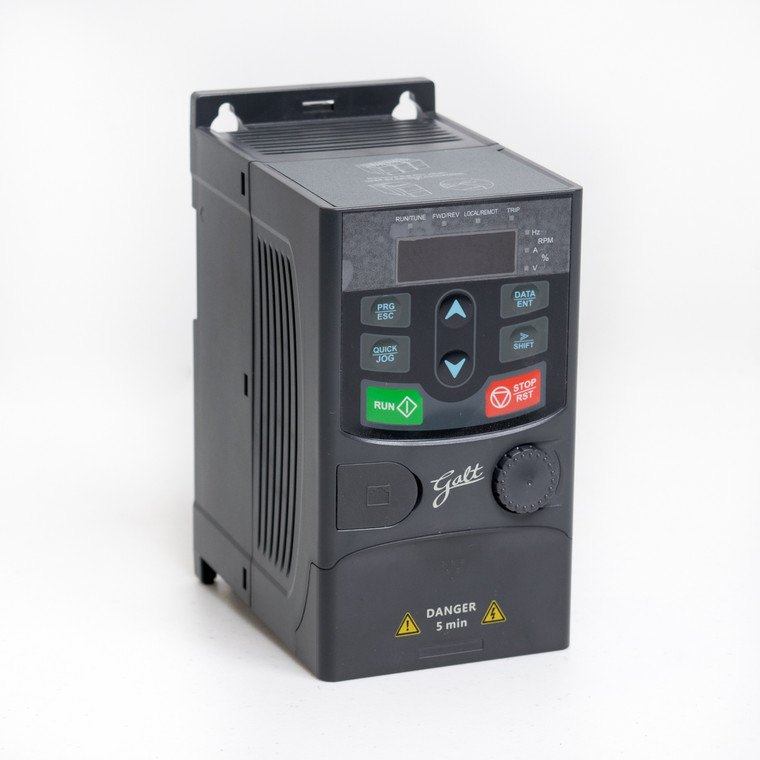

3HP, 480V, 3Ph, Galt Electric G200 Legacy VFD (G240-00055UL-01)

3HP, 480V, 3Ph, Galt Electric G200 Legacy VFD (G240-00055UL-01)

Brand:
GALT ELECTRIC
Model:
G240-00055UL-01
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge

There is a newer model of this item:

Out Of Stock
List Price:  $743.00
Online Price: $556.92
Adding to cart… The item has been added

Galt G200 variable frequency drives are micro drives meant for use in smaller applications. These VFDs are sized for 120% overload, but they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.

The G200 inverter is simple to use and install and is compatible with options like external keypads. This adjustable speed drive is available in multiple input voltages and phases, including 120V / single phase, 240V / single phase, 240V / three phase, and 480V / three phase. G200 VFDs are available up to 15 horsepower.

G240-00055UL-01

  • 3 Horsepower
  • 5.5 Amps
  • 480 Volt
  • IP20
  • UL rated
  • Three phase input and output
  • Modbus communication protocol standard
  • 3-year manufacturer warranty
Write a Review

Technical Specifications

Product Information

GALT ELECTRIC G200 Series

Galt Electric's mission is to make technology approachable. The G200 series VFD is the drive that helps handle the everyday applications you encounter. With a simple interface, easy installation, and the capability to control the motors you need.

Galt AC drives are reliable out of the box and backed with a 3-year standard warranty. With online support videos and experts available by phone, email, and chat, you're supported with any question you have. The simple interface and available option card, keypad, and HMI upgrades give you options to make your interactions with the VFD as easy as possible.

The Galt G200 series is the VFD that will help make your system to be reliable, usable, and efficient.

Standard Features

  • Compact design with options for parallel installation
  • High performance open-loop sensorless vector control
  • Integrated PID controller
  • DC injection, dynamic, and flux braking compatible
  • Built-in C3 EMC filter to prevent electromagnetic interference
  • QR code display for additional parameter information and fault troubleshooting
  • Options for 240V single to three phase conversion
  • Options for 120V single to 240V three phase conversion
Download Manual


Galt Electric G200 Series Inverter


The G200 series is a industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the user friendliness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.

  • Air-cooling technology implemented
  • Compact design with the option of parallel installation
  • External keypad used to change input/output settings easily
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
  • DC injection, dynamic, and flux braking
  • Modbus Communication protocol standard (Standard 485 communication interface)
  • Integrated PID controller
  • Open-loop sensor-less vector
  • Real-time accumulative power consumption display
  • Built-in standard keypad

Videos


Galt VFD Quick Start Guide

Quick start guide on using the Galt Electric VFDs.


How to Wire a Galt Electric G200 Series VFD

Wiring instructions of the Galt Electric G200 series VFDs




How to Program a Galt Electric G200 Series VFD

Basic programming instructions for the Galt Electric G200 series VFDs.


How to Maintain Your VFD

Simple things to do to increase the life of your VFD.




How to Troubleshoot Error Codes on Your VFD

Getting an error code on your Galt VFD? What do you do now? Learn about the different error codes in Galt Electric VFDs and what to do about them.
