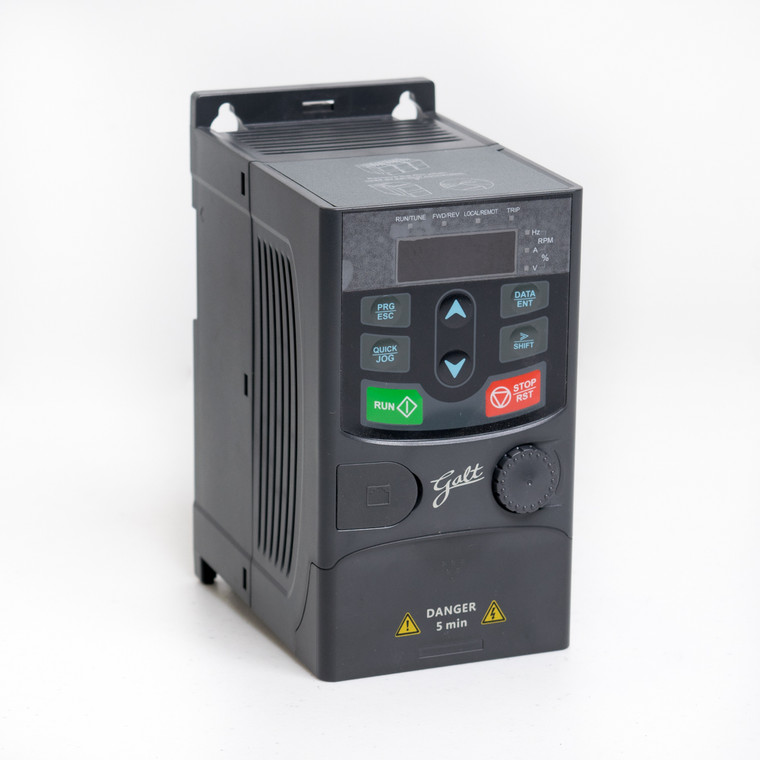

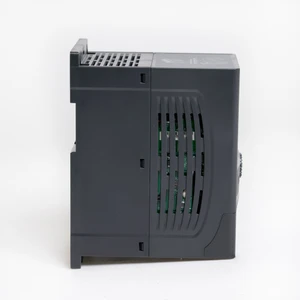

3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G220-00100UL-02
Brand: GALT ELECTRIC
Model: G220-00100UL-02
Condition: New
Kit Includes:
Highlights
- Built in C3 filter to prevent electromagnetic interference
- Air-cooling technology implemented
- Compact design with the option of parallel installation
- External keypad used to change input/output settings easily
- QR Code Display for Additional Parameter Information and Fault Troubleshooting
Compare with similar items
This Item
|
|
|
|
|
|
|
| 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G220-00100UL-02 | 3HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00100UL-03 | 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00100UL-02 | 3HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00100UL-01 | 3HP 230V Galt Electric G300 VFD, Inverter, AC Drive G320-00100UL-01 | 3HP 230V Delta VFD-M VFD, Inverter, AC Drive VFD022M21A | |
| Ratings | ||||||
| Price |
$229.00
|
$495.55
|
$207.00
|
$446.00
|
$405.00
|
$304.00
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
G200
|
G500
|
G200
|
G500
|
G300
|
VFD-M
|
| Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
| Brand |
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
| Horsepower Rating |
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
| Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
| Rated Amps |
11 A
|
10 A
|
10 A
|
10 A
|
10 A
|
10 A
|
| Model |
G22000100UL02
|
G520-00100UL-03
|
G22S0-00100UL-02
|
G520-00100UL-01
|
G320-00100UL-01
|
VFD022M21A
|
Technical Specifications
| Constant Torque / Variable Torque | Variable Torque |
|---|---|
| Phase | Three Phase |
| Phase Rating | 3 Phase Input - 3 Phase Output |
| Series | G200 |
| Enclosure Rating | IP 20 |
| Brand | GALT ELECTRIC |
| Horsepower Rating | 3 HP |
| Rated Voltage | 230 V |
| Product Condition | New |
| Output Voltage | 230 V |
| Output Amperage Rating | 11 A |
| Rated Amps | 11 A |
| HP Rating @ 150% OL | 3 HP |
| Amp Rating @ 150% OL | 11 A |
| Model | G22000100UL02 |
| Height | 10 in |
| Width | 5.75 in |
| Depth | 6.57 in |
| Warranty | 3 Years |
Product Information
GALT ELECTRIC G200 Series
The G200 series is an industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the user friendliness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.
Highlights
- Built in C3 filter to prevent electromagnetic interference
- Air-cooling technology implemented
- Compact design with the option of parallel installation
- External keypad used to change input/output settings easily
- QR Code Display for Additional Parameter Information and Fault Troubleshooting
Standard Features
- DC injection, dynamic, and flux braking
- Modbus Communication protocol standard (Standard 485 communication interface)
- Integrated PID controller
- Open-loop sensorless vector
- Real-time accumulative power consumption display
- Built-in standard keypad
Product Features
Galt Electric G200 Series Inverter
The G200 series is a industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the user friendlyness. Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.
- Air-cooling technology implemented
- Compact design with the option of parallel installation
- External keypad used to change input/output settings easily
- QR Code Display for Additional Parameter Information and Fault Troubleshooting
- DC injection, dynamic, and flux braking
- Modbus Communication protocol standard (Standard 485 communication interface)
- Integrated PID controller
- Open-loop sensorless vector
- Real-time accumulative power consumption display
- Built-in standard keypad
