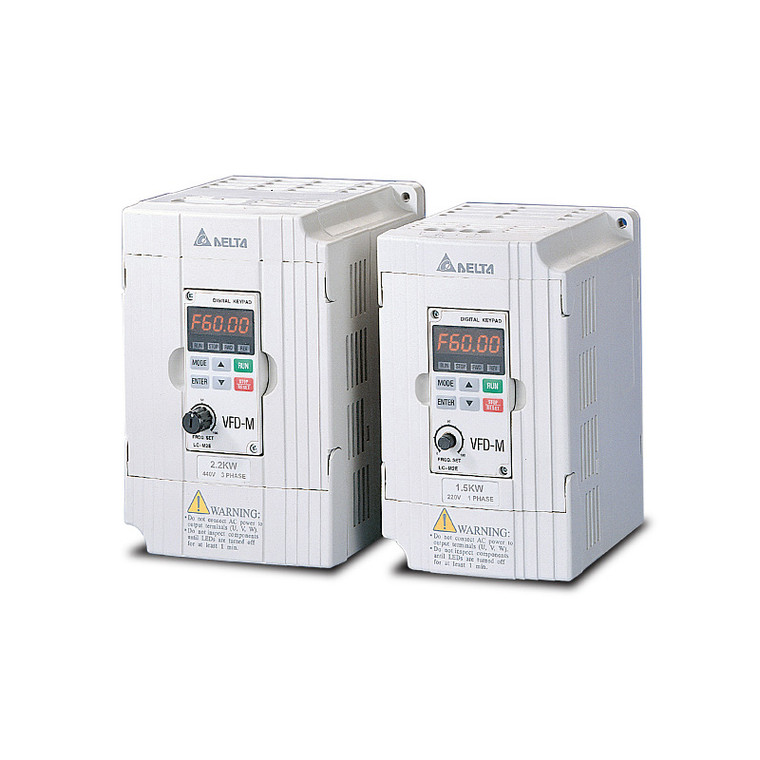

3HP 230V Delta VFD-M VFD, Inverter, AC Drive VFD022M21A
Brand: Delta
Model: VFD022M21A
Condition: New
Kit Includes:
Highlights
- Output frequency 0.1 ~ 400 Hz
- Adjustable V/f curve and vector control
- Carrier frequency up to 15 kHz
- Auto torque boost & slip compensation
- Built-in PID feedback control
- Built-in MODBUS communication, baud rate up to 38400 bps
- 0 speed holding function
- Built-in sleep / revival function
- Support communication module (DN-02, LN-01, PD-01)
Compare with similar items
This Item
|
|
|
|
|
|
|
| 3HP 230V Delta VFD-M VFD, Inverter, AC Drive VFD022M21A | 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00100UL-02 | 3HP 230V Galt Electric G200 VFD, Inverter, AC Drive G220-00100UL-02 | 3HP 230V Galt Electric G500 VFD, Inverter, AC Drive G520-00100UL-01 | 3HP 230V Galt Electric G300 VFD, Inverter, AC Drive G320-00100UL-01 | 3HP 230V Delta MS300 VFD, Inverter, AC Drive VFD11AMS21AFSAA | |
| Ratings | ||||||
| Price |
$304.00
|
$207.00
|
$229.00
|
$446.00
|
$405.00
|
List Price
$459.00
Online Price
$229.50
|
| Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Series |
VFD-M
|
G200
|
G200
|
G500
|
G300
|
MS300
|
| Rated Amps |
10 A
|
10 A
|
11 A
|
10 A
|
10 A
|
11 A, 12.5 A
|
| Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
| Frame Size |
|
|
|
|
|
C2
|
| Brand |
Delta
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
| Horsepower Rating |
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
3 HP
|
| Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
| Model |
VFD022M21A
|
G22S0-00100UL-02
|
G22000100UL02
|
G520-00100UL-01
|
G320-00100UL-01
|
VFD11AMS21AFSAA
|
Technical Specifications
| Phase Rating | 1 Phase Input - 3 Phase Output |
|---|---|
| Rated Input Frequency | 60 Hz |
| Constant Torque / Variable Torque | Constant Torque |
| Series | VFD-M |
| Phase | Single Phase |
| Rated Amps | 10 A |
| Enclosure Rating | IP 20 |
| Brand | Delta |
| Horsepower Rating | 3 HP |
| Rated Voltage | 230 V |
| Product Condition | New |
| Output Voltage | 230 V |
| Output Amperage Rating | 10 A |
| HP Rating @ 150% OL | 3 HP |
| Amp Rating @ 150% OL | 10 A |
| Model | VFD022M21A |
| Height | 8.66 in |
| Width | 4.92 in |
| Depth | 6.55 in |
| Warranty | 1 Year |
Product Information
Delta VFD-M Series
Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
Highlights
- Output frequency 0.1 ~ 400 Hz
- Adjustable V/f curve and vector control
- Carrier frequency up to 15 kHz
- Auto torque boost & slip compensation
- Built-in PID feedback control
- Built-in MODBUS communication, baud rate up to 38400 bps
- 0 speed holding function
- Built-in sleep / revival function
- Support communication module (DN-02, LN-01, PD-01)
