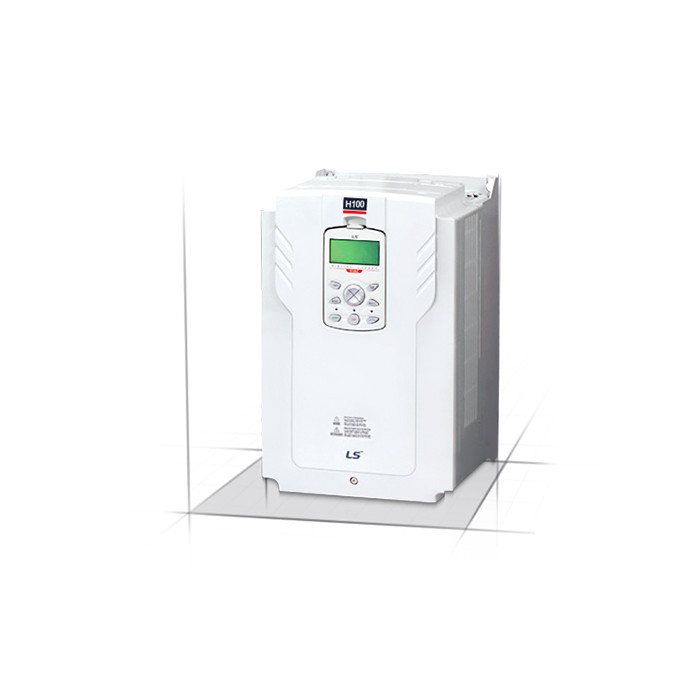

3HP 230V LS Electric H100 VFD, Inverter, AC Drive LSLV0022H100-2CONN (LSLV0022H100-2CONN)

3HP 230V LS Electric H100 VFD, Inverter, AC Drive LSLV0022H100-2CONN (LSLV0022H100-2CONN)

Brand:
LS
Model:
LSLV0022H100-2CONN
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $781.10
Online Price: $585.83
Adding to cart… The item has been added
  • Specialized function for HVAC
  • V/f control
  • Built-in BACnet communication
  • LonWorks (Option)
  • Keypad Exclusive for HVAC
  • Built-in EMC filter/DC Reactor
  • Side by Side Installation
  • Heatsink out the back installation
  • Enhanced Size Competitiveness
  • Capacitor/Fan Life Cycle Management Function
Write a Review

Technical Specifications

Model:
LSLV0022H100-2CONN
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
3 HP
HP Rating @ 120% OL:
3 HP
Rated Amps:
12 A
Amp Rating @ 120% OL:
12 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
12 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
H100
Height:
9.13 in
Width:
6.30 in
Depth:
7.13 in

Product Information

LS H100 Series

Innovative Energy Reduction - The LSIS H100 drive solution is here for you. The LSLV-H100 sets the standard for the drive industry. Environmentally friendly water treatment and Fan and Pump systems incorporate the outstanding energy-saving benefits of the LSLV-H100 for fans and pumps.
