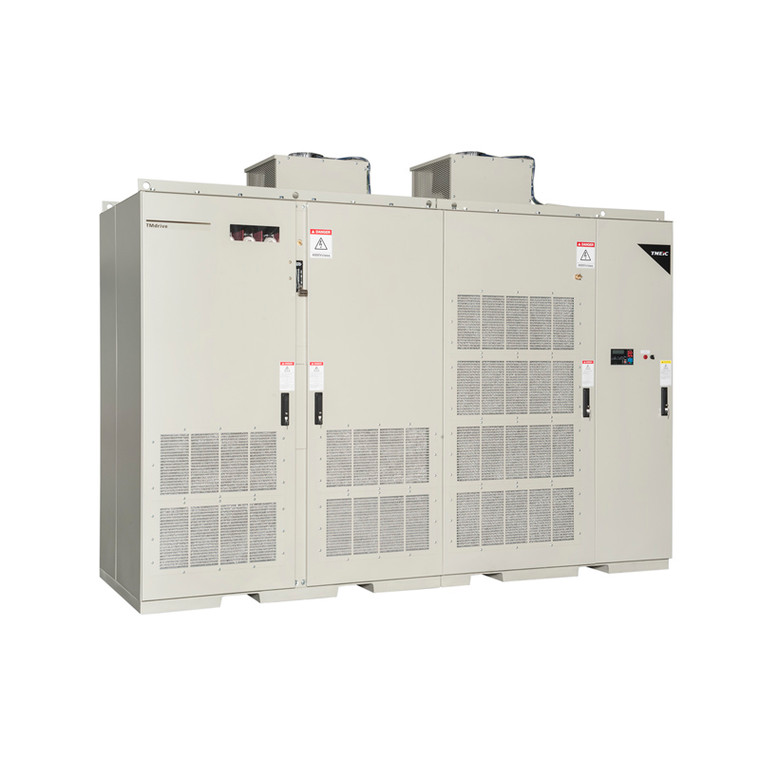

3630HP 11000V TMEIC MVe2 Medium Voltage VFD, Inverter, AC Drive MVe2-11000V-3630HP (MVe2-11000V-3630HP)

3630HP 11000V TMEIC MVe2 Medium Voltage VFD, Inverter, AC Drive MVe2-11000V-3630HP (MVe2-11000V-3630HP)

Brand:
TMEIC
Model:
MVe2-11000V-3630HP
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Conservative design using 1200 V IGBTs
  • High energy efficiency approximately 97%
  • PWM converter enables unity power factor operation
  • Regenerative braking
  • Harmonic cancelling, state-of-the-art active rectifiers and transformer with phase shifted secondaries
  • Multiple level drive output waveform to the motor (seven levels for the 6.6 kV inverter)
  • Synchronous transfer to line option with no interruption to motor current
  • Input isolation transformer included in drive package
  • Direct drive voltage output level
Write a Review

Technical Specifications

Product Information

TMEIC MVe2 Series

The MVe2 series TMEIC is an AC-fed medium voltage drive, manufactured for maximum efficiency and high-power operation through vast categories of industrial uses. The drive has been designed with low harmonic distortion along with both high factor operation and reliability for optimal performance.

Applications

The medium voltage MVe2 drive is equipped to operate in a broad range of applications, such as; centrifugal pumps, fans, screw compressors, mills, blowers, compressors, refiners, extruders, conveyors, press machines, slurry pipelines, and mixers.

Download Brochure

TMEIC Medium Voltage VFD

MVe2 Series

3.3 to 11 kV, up to 7,350 kVA (8,000 HP)


  • The TMdrive-MVe2 is a medium voltage, AC fed drive designed for high-efficiency and power-friendly operation in a broad range of industrial applications.
  • High reliability, low harmonic distortion, regenerative operation and reactive power control operation are designed into the drive.

Applications

  • The TMdrive-MVe2 is designed for a wide range of industrial applications, including: Centrifugal pumps, fans, and compressors, screw compressors, blowers, refiners, mixers, extruders, conveyors, press machines, slurry pipelines, mills, hot gas expanders, etc.
  • Energy regeneration capability is included, allowing braking of overhauling loads and rapid stopping of loads such as fans and pumps.
