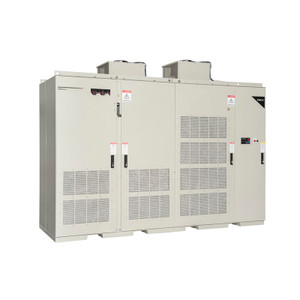

4290HP 11000V TMEIC MVe2 Medium Voltage VFD, Inverter, AC Drive MVe2-11000V-4290HP

Brand: TMEIC
Model: MVe2-11000V-4290HP
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Conservative design using 1200 V IGBTs
  • High energy efficiency approximately 97%
  • PWM converter enables unity power factor operation
  • Regenerative braking
  • Harmonic cancelling, state-of-the-art active rectifiers and transformer with phase shifted secondaries
  • Multiple level drive output waveform to the motor (seven levels for the 6.6 kV inverter)
  • Synchronous transfer to line option with no interruption to motor current
  • Input isolation transformer included in drive package
  • Direct drive voltage output level
Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series MVe2
Enclosure Rating UL Type 1
Brand TMEIC
Horsepower Rating 4290 HP
Rated Voltage 11000 V
Product Condition New
Output Voltage 11000 V
Output Amperage Rating 226 A
Rated Amps 226 A
HP Rating @ 110% OL 4290 HP
Amp Rating @ 110% OL 226 A
Model MVe2-11000V-4290HP
Height 118 in
Width 295.3 in
Depth 55 in
Product Information

TMEIC MVe2 Series

The MVe2 series TMEIC is an AC-fed medium voltage drive, manufactured for maximum efficiency and high-power operation through vast categories of industrial uses. The drive has been designed with low harmonic distortion along with both high factor operation and reliability for optimal performance.

Applications

The medium voltage MVe2 drive is equipped to operate in a broad range of applications, such as; centrifugal pumps, fans, screw compressors, mills, blowers, compressors, refiners, extruders, conveyors, press machines, slurry pipelines, and mixers.

Highlights

  • Conservative design using 1200 V IGBTs
  • High energy efficiency approximately 97%
  • PWM converter enables unity power factor operation
  • Regenerative braking
  • Harmonic cancelling, state-of-the-art active rectifiers and transformer with phase shifted secondaries
  • Multiple level drive output waveform to the motor (seven levels for the 6.6 kV inverter)
  • Synchronous transfer to line option with no interruption to motor current
  • Input isolation transformer included in drive package
  • Direct drive voltage output level
