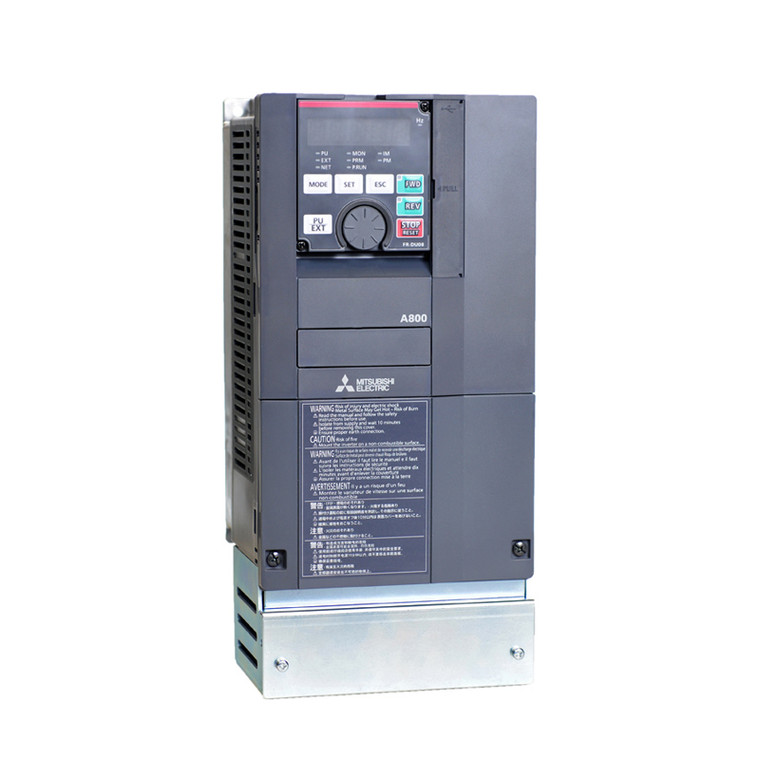

30HP & 25HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A840-00470-1-N6 (FR-A840-00470-1-N6)

Brand:
MITSUBISHI
Model:
FR-A840-00470-1-N6
Condition:
New
0 Customer Reviews
In Stock
List Price:  $6,943.00
Online Price: $5,554.40
Adding to cart… The item has been added
  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Energy saving functions
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
  • Multi-language LCD parameter unit includes clock functions
  • Inverter complies with European EMC Directive
  • Global compliance

Technical Specifications

Model:
FR-A840-00470-1-N6
Brand:
MITSUBISHI
Product Condition:
New
Horsepower Rating:
20 HP
Horsepower Rating:
25 HP
Horsepower Rating:
30 HP
HP Rating @ 110% OL:
30 HP
HP Rating @ 120% OL:
30 HP
HP Rating @ 150% OL:
25 HP
HP Rating @ 200% OL:
20 HP
Rated Amps:
31 A
Amp Rating @ 110% OL:
47 A
Amp Rating @ 120% OL:
43 A
Amp Rating @ 150% OL:
38 A
Amp Rating @ 200% OL:
31 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
47 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
UL Type 1
Series:
A800
Rated Amps:
38 A
Rated Amps:
43 A
Rated Amps:
47 A
Height:
20.40 in
Width:
9.80 in
Depth:
7.50 in

Product Information

MITSUBISHI A800 Series

CT INVERTER 25HP(ND) 480V UL-TYPE 1
