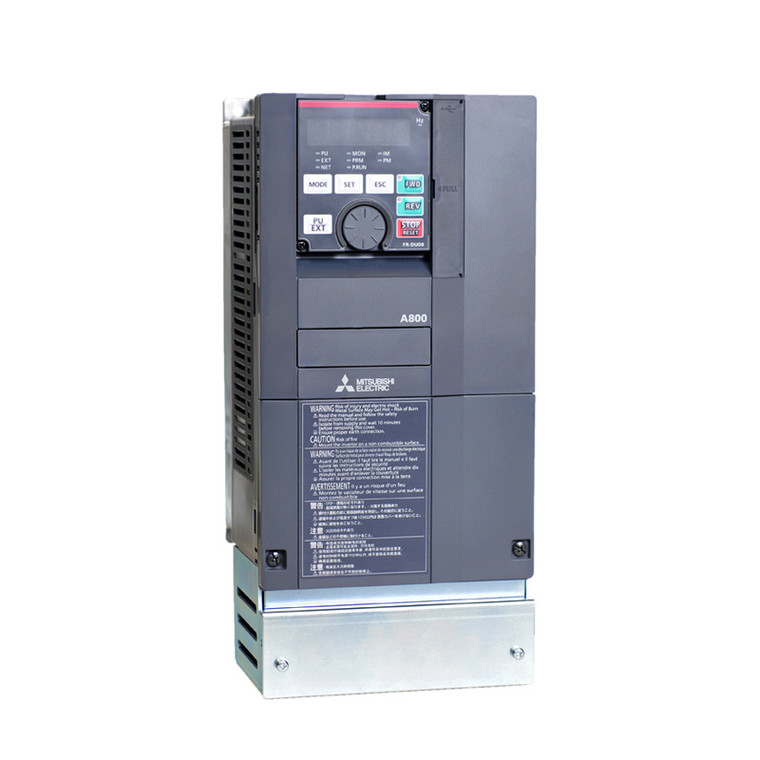

25HP & 20HP 460V Mitsubishi VFD, Inverter, AC Drive FR-A840-00380-1-N6

Brand: MITSUBISHI
Model: FR-A840-00380-1-N6
Condition: New
Rating:
0% of 100

In stock
Order now to ship tomorrow
List Price $4,345.00 Online Price $3,258.75

Highlights

  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Energy saving functions
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
  • Multi-language LCD parameter unit includes clock functions
  • Inverter complies with European EMC Directive
  • Global compliance
Compare with similar items

Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series A800
Rated Amps 23 A, 31 A, 35 A, 38 A
Enclosure Rating UL Type 1
Brand MITSUBISHI
Horsepower Rating 15 HP, 20 HP, 25 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 38 A
HP Rating @ 110% OL 25 HP
HP Rating @ 120% OL 25 HP
HP Rating @ 150% OL 20 HP
HP Rating @ 200% OL 15 HP
Amp Rating @ 110% OL 38 A
Amp Rating @ 120% OL 35 A
Amp Rating @ 150% OL 31 A
Amp Rating @ 200% OL 23 A
Model FR-A840-00380-1-N6
Height 14.3 in
Width 8.7 in
Depth 7.5 in
Product Information

MITSUBISHI A800 Series

Premium Drive Performance

The Mitsubishi A800 series drive is manufactured for unmatched precision, speed control, flexibility, and powerful startup capabilities. Using its strong technological capabilities, Mitsubishi Electric has designed a powerful drive to run various applications at high performance levels.

Highlights

  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Energy saving functions
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
  • Multi-language LCD parameter unit includes clock functions
  • Inverter complies with European EMC Directive
  • Global compliance
