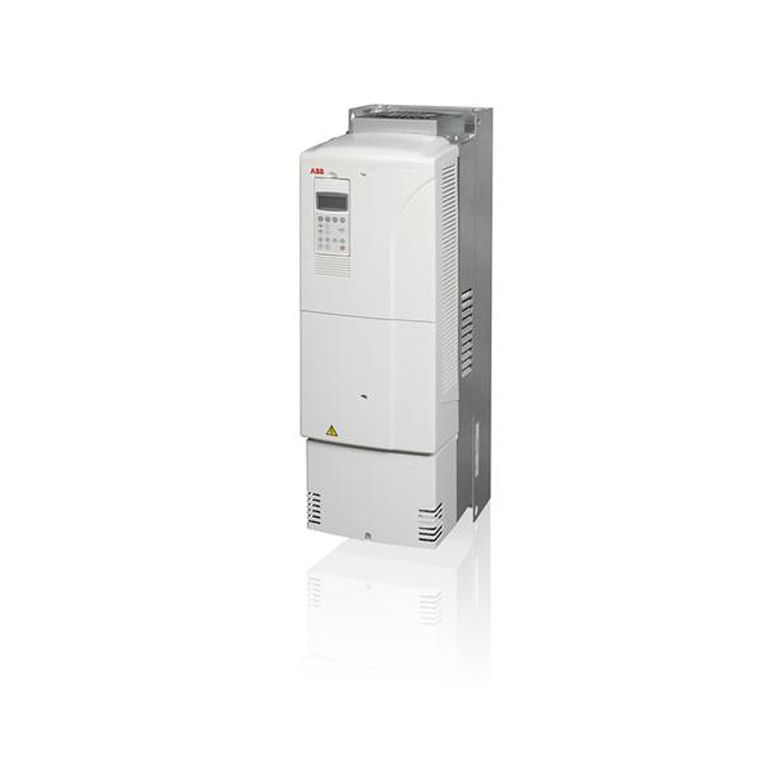

ABB ACS800-U1 VFD, 30HP, 34A, 460V (ACS800-U1-0030-5)

ABB ACS800-U1 VFD, 30HP, 34A, 460V (ACS800-U1-0030-5)

Brand:
ABB
Model:
ACS800-U1-0030-5
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Wall mounting
  • UL Type 1 protection class Compact design
  • Harmonic filtering AC choke inside Input rectifier protection
  • Brake chopper (in frame sizes R2-R3; R4 only 690 V)
  • Long lifetime cooling fan and capacitors
  • Extensive, programmable I/O with galvanically isolated inputs
  • Three I/O and fieldbus extension slots inside
  • Alphanumeric, multilingual control panel with start-up assistant feature
  • Large power terminals allowing use of a wide range of cable sizes
    • Write a Review

    Technical Specifications

    Product Information

    ABB ACS800-U1 Series

    ACS800-U1 Series Wall-mounted Drive

    Compact and Complete Drive

    The ACS800-U1 offers all that you need in a single, extremely small, wall-mounted package making it a compact and complete drive. The standard degree of protection is UL Type 1. Optional UL Type 12 allows full performance without derating. Power ratings start from 1 Hp heavy-duty rating and go up to 200 Hp continuous load rating. There are five different mechanical frame sizes covering the power range. Each frame size is optimized for performance, size and weight.

    Highlights

    Standard Features

    Drive Details

    Manufacturer
    ABB

    Series
    ACS800-U1

    Model
    ACS800U100305

    Condition
    New

    Constant/Variable Torque
    CT/VT

    Horsepower?
    LO: 30 HP
    HO: 25 HP

    Maximum Amps?
    LO: 42 A
    HO: 34 A

    Input
    3-Phase
    380 to 500V at 50/60 Hz

    Output
    3-Phase
    380 to 500V at 50/60 Hz

    Enclosure Rating
    UL Type 1

    Frame Size
    R4

    Dimensions
    Height: 23.9 in
    Width: 9.4 in
    Depth: 10.8 in
