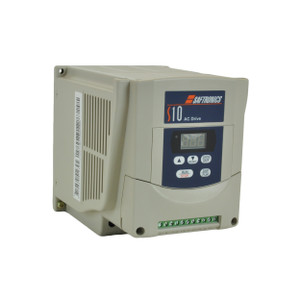

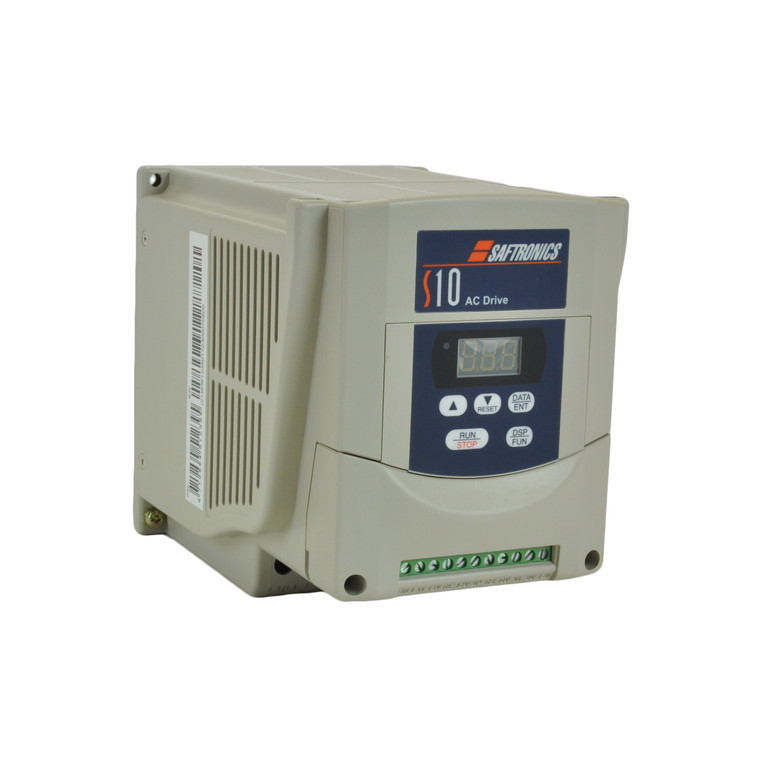

2HP 460V Saftronics VFD, Inverter, AC Drive S104002-4

Brand: Saftronics
Model: S104002-4
Condition: New Surplus
0% of 100

In stock
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque Variable Torque
Series S10
Phase Three Phase
Rated Amps 3.8 A
Enclosure Rating UL Type 4X
Brand Saftronics
Horsepower Rating 2 HP
Rated Voltage 460 V
Product Condition New Surplus
Output Voltage 460 V
Output Amperage Rating 3.8 A
HP Rating @ 150% OL 2 HP
Amp Rating @ 150% OL 3.8 A
Model S104002-4
Height 11.61 in
Width 9.13 in
Depth 8.32 in
Product Information

Saftronics S10 Series

The Saftronics S10 series drives are manufactured using industry established PWM technology and a powerful software platform allowing for flexibility for user-based programming.

Standard Features

  • No de-rating needed for single phase input
  • A full set of motor and drive diagnostics
  • Programmable I/O
  • Power ride through
  • DC injection braking
  • 3 event fault log
  • 6 selectable V/Hz curves.
  • Frequency range of 1 to 200 HZ
  • Overload protection of 150% for up to 1 minute.
  • Mounting screws or DIN rail installation
  • Digital LED display
  • Adjustable torque boost
  • Alarms for motor overload, overheat, & overcurrent
  • Programmable accelerate/decelerate time between 0.1-999 Seconds
