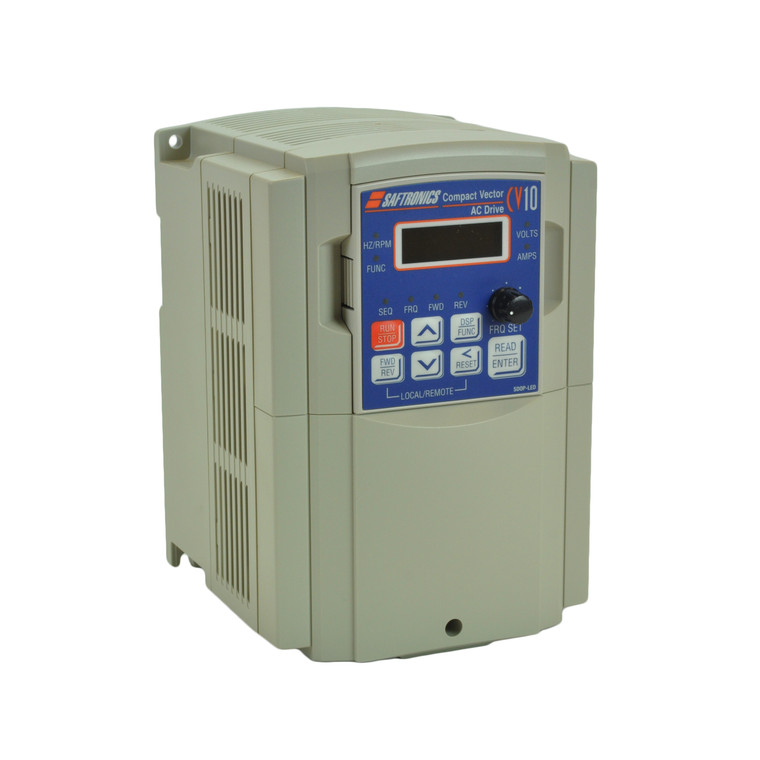

2HP 460V Saftronics VFD, Inverter, AC Drive CV104002-9
Brand: Saftronics
Model: CV1040029
Condition: New Surplus
Rating:
0% of 100
Compare with similar items
This Item
![]() |
|
![]() |
|
![]() |
![]() |
|
2HP 460V Saftronics VFD, Inverter, AC Drive CV104002-9 | 2HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00037UL-02 | 2HP 460V Galt Electric G500 VFD, Inverter, AC Drive G540-00037UL-01 | 1HP & 2HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-00037UL-01 | 2HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD015E43P | 2HP 460V Saftronics VFD, Inverter, AC Drive S104002-4 | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
100%
|
Rating:
100%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Price |
$393.99
|
$190.00
|
$347.00
|
$315.00
|
$236.33
|
$169.99
|
Free Shipping |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Series |
CV10
|
G200
|
G500
|
G300
|
VFD-E
|
S10
|
Rated Amps |
3.8 A
|
3.7 A
|
3.7 A
|
3.7 A
|
4.2 A
|
3.8 A
|
Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
IP 20
|
IP 20
|
UL Type 4X
|
Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Delta
|
Saftronics
|
Horsepower Rating |
2 HP
|
2 HP
|
2 HP
|
2 HP
|
2 HP
|
2 HP
|
Rated Voltage |
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
460 V
|
Model |
CV104002-9
|
G240-00037UL-02
|
G540-00037UL-01
|
G340-00037UL-01
|
VFD015E43P
|
S104002-4
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 3.8 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 2 HP |
Rated Voltage | 460 V |
Product Condition | New Surplus |
Output Voltage | 460 V |
Output Amperage Rating | 3.8 A |
HP Rating @ 150% OL | 2 HP |
Amp Rating @ 150% OL | 3.8 A |
Model | CV104002-9 |
Height | 6.42 in |
Width | 3.54 in |
Depth | 5.79 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
