Technical Specifications
Model:
VG102002-1
Brand:
Saftronics
Product Condition:
Seller refurbished
Horsepower Rating:
2 HP
HP Rating @ 150% OL:
2 HP
Rated Amps:
8 A
Amp Rating @ 150% OL:
8 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
8 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
UL Type 1
Series:
VG10
Height:
10.24 in
Width:
5.91 in
Depth:
5.71 in
Product Information

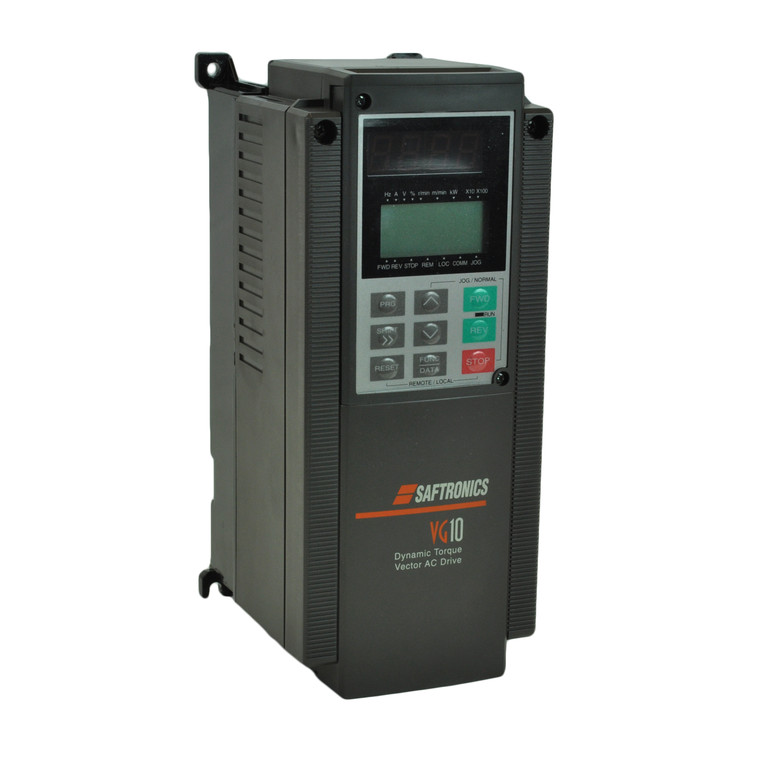

Saftronics VG10 Series
The VG10 series drive is ideal for high-performing constant torque applications where fast torque response and precision are needed. Speed search, Soft-Switching, and automatic restart technology make the VG10 an optimal industrial drive.
Standard Features
- Closed loop flux vector, open loop (sensorless) vector, and Volts / Hertz control methods
- 400Hz maximum frequency
- Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and on-line tuning (continuous tuning while running)
- Graphic back-lit LCD keypad with digital LEDs
- Uniform programming parameters with the GP10 Series
- Soft switching technology to eliminate output filters
- Serial communication (RS485 Modbus Standard; Lon Works, Device Net, Ethernet, Metasys N2, Profibus-DP, and Interbus-S optional)
- Built in dynamic breaking
- Dual motor parameter table
- Saflink compatible
- Speed control accuracy of ±0.2% (±0.02% with PG)
- Overload protection of 150% for up to 1 minute.
