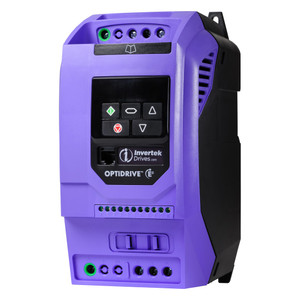

2HP, 460V, Invertek Optidrive E3 VFD (ODE-3-240041-3F4Y)

Brand:
INVERTEK
Model:
ODE-3-240041-3F4Y
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $1,625.00
Online Price: $1,508.93
Adding to cart… The item has been added

Invertek variable frequency drives focus on performing well, providing simple programming, and fitting your application.

ODE-3-240041-3F4Y

  • 2 Horsepower
  • 4.1 Amps
  • 460 Volts
  • IP 66
  • 3 Phase Input - 3 Phase Output

Technical Specifications

Model:
ODE-3-240041-3F4Y
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
2 HP
HP Rating @ 150% OL:
2 HP
Rated Amps:
4.1 A
Amp Rating @ 150% OL:
4.1 A
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
4.1 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
2
Series:
Optidrive E3
Rated Voltage:
480 V
Height:
10.12 in
Width:
7.40 in
Depth:
7.36 in

Product Information

INVERTEK Optidrive E3 Series

Invertek focuses on sophisticated motor controls for energy savings. The Optidrive E3 is easy to understand and use. The space-saving design helps fit in compact applications.

Standard Features

  • Simple commissioning with 14 parameter basic setup and default settings suitable for most applications
  • Contactor-style connections for simple wiring
  • Intuitive keypad with precise digital control at the touch of a button
  • Applications macros to switcch between industrial, pump, and fan modes
  • Internal category C1 EMC filter
  • Single phase input and output options
