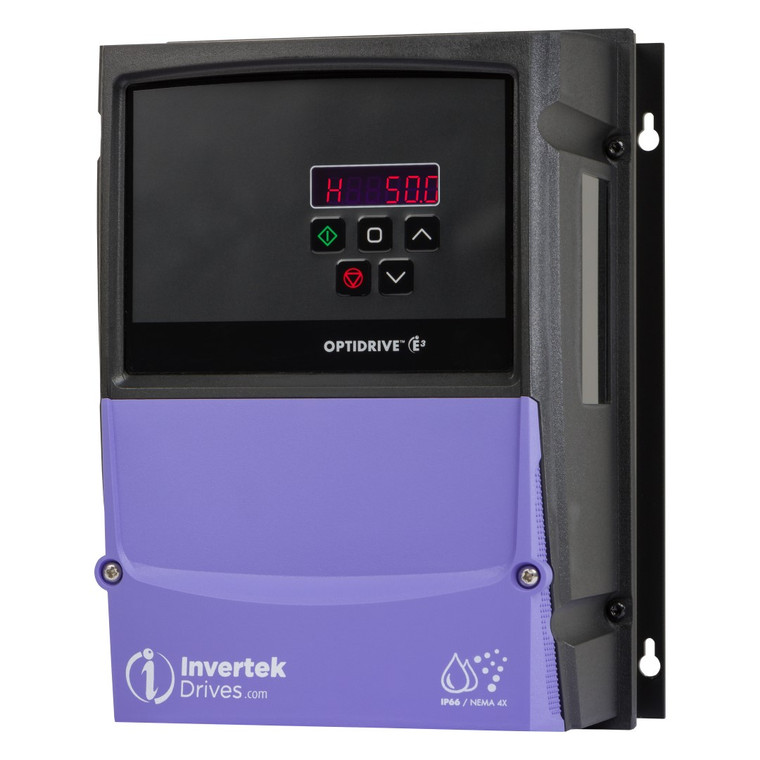

2HP 460V Invertek Optidrive E3 VFD, Inverter, AC Drive ODE-3-240041-3F4A (ODE-3-240041-3F4A)

2HP 460V Invertek Optidrive E3 VFD, Inverter, AC Drive ODE-3-240041-3F4A (ODE-3-240041-3F4A)

Brand:
INVERTEK
Model:
ODE-3-240041-3F4A
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $1,410.00
Online Price: $680.36
Adding to cart… The item has been added
  • Internal Category C1 EMC filter
  • Internal PI control
  • Internal brake chopper
  • Dual analogue inputs
  • Operates up to 50°C
  • Bluetooth connectivity
Write a Review

Technical Specifications

Model:
ODE-3-240041-3F4A
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
2 HP
HP Rating @ 150% OL:
2 HP
Rated Amps:
4.1 A
Amp Rating @ 150% OL:
4.1 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
4.1 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
2
Series:
Optidrive E3
Height:
10.12 in
Width:
7.40 in
Depth:
7.36 in

Product Information

INVERTEK Optidrive E3 Series

Focused on ease of use, Optidrive E3 provides unrivalled simplicity of installation, connection and commissioning, allowing the user to benefit from precise motor control and energy savings within minutes.

Download Manual
