Drive Details
Manufacturer
WEG
Series
CFW08
Model
CFW080073BDN1A5Z
Condition
New
Constant/Variable Torque
CT
Horse Power
2 HP
Maximum Amps
7.3 A
Input
1 or 3 Phase
230V
Output
3-Phase
230V
Dimensions
Height: 7.9 in
Width: 4.5 in
Depth: 5.9 in
Enclosure
NEMA 1
Download the Manual/Brochure

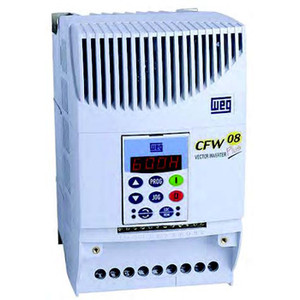

WEG CFW08 Series Compact Variable Frequency Drive (VFD)
The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.
Features:
- V/Hz and Sensorless Vector Control
- NEMA 1 Enclosure
- Single and Three-phase input voltage
- 200-240V or 380-480V input voltage
- 150% current overload capacity
- 16 bit DSP controlled PWM output
- 2.5 / 5 / 10 / 15 kHz adjustable switching frequency
- Four isolated programmable digital inputs
- Two programmable relay outputs
- Two isolated programmable analog inputs
- Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
- Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
- Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
- Ambient: 32F (0C) to 104F (40C), 3300ft (1000m) altitude, 90% humidity, non-condensing
