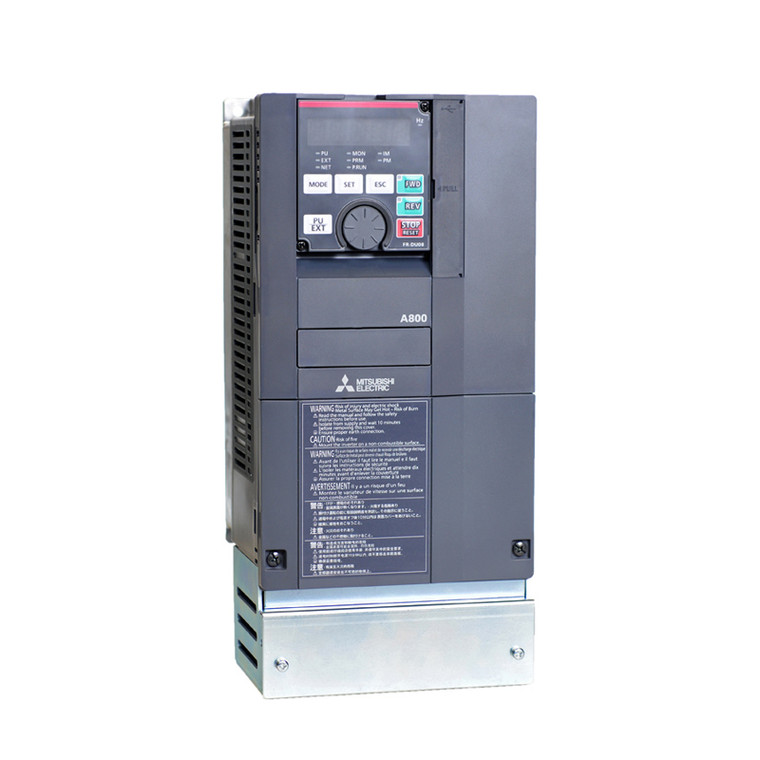

25HP 230V Mitsubishi A800E VFD, Inverter, AC Drive FR-A820-00770-E1N6

Brand: MITSUBISHI
Model: FR-A820-00770-E1N6
Condition: New
Rating:
0% of 100

In stock
List Price $4,995.00 Online Price $3,746.25

Highlights

  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Rated Input Frequency 60 Hz
Series A800E
Phase Three Phase
Rated Amps 46 A, 61 A, 70.5 A, 77 A
Enclosure Rating UL Type 1
Frame Size F
Brand MITSUBISHI
Horsepower Rating 15 HP, 20 HP, 25 HP
Rated Voltage 230 V
Product Condition New
Output Voltage 230 V
Output Amperage Rating 77 A
HP Rating @ 110% OL 25 HP
HP Rating @ 120% OL 25 HP
HP Rating @ 150% OL 20 HP
HP Rating @ 200% OL 15 HP
Amp Rating @ 110% OL 77 A
Amp Rating @ 120% OL 70.5 A
Amp Rating @ 150% OL 61 A
Amp Rating @ 200% OL 46 A
Model FR-A820-00770-E1N6
Height 20.4 in
Width 9.8 in
Depth 7.5 in
Product Information

MITSUBISHI A800E Series

FR-A800-E Series with Built-in Ethernet Communication

The FR-A800-E adds an integrated web server and 100Mbit Ethernet TCP/IP connectivity as standard to the existing network options of the FR-A800 flagship multi-use inverter. The FR-A800-E provides machine builders and systems integrators an increased ability for remote system monitoring and parameter adjustment, as well as easy integration into existing network environments.

**FR-A800-E Series Drives Have Removed RS485 Terminals**

Highlights

  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
