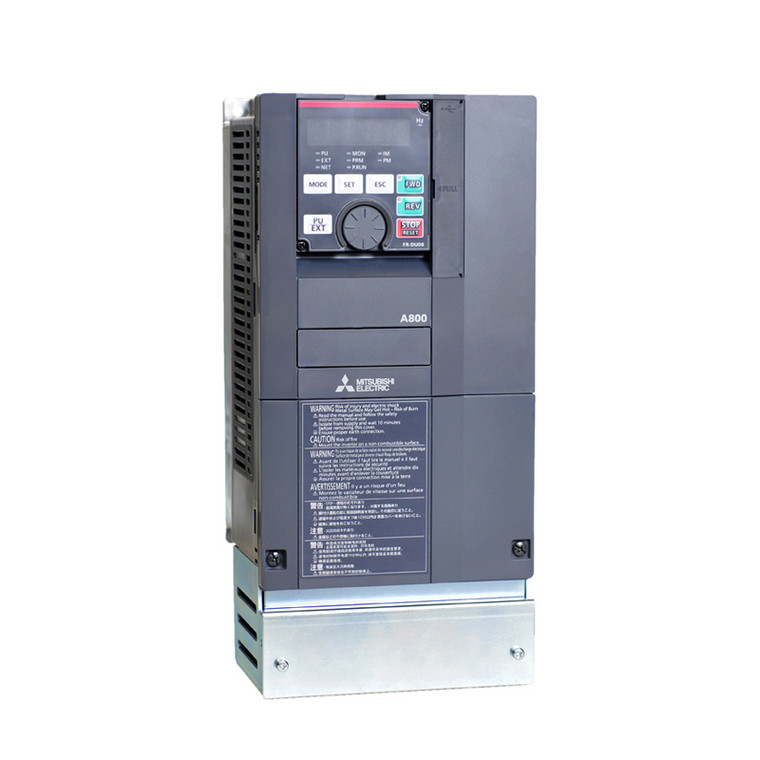

10HP 230V Mitsubishi A800E VFD, Inverter, AC Drive FR-A820-00340-E1N6 (FR-A820-00340-E1N6)

10HP 230V Mitsubishi A800E VFD, Inverter, AC Drive FR-A820-00340-E1N6 (FR-A820-00340-E1N6)

Brand:
MITSUBISHI
Model:
FR-A820-00340-E1N6
Condition:
New
0 Customer Reviews
Out Of Stock
Online Price: $2,216.00
Adding to cart… The item has been added
  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
Write a Review

Technical Specifications

Model:
FR-A820-00340-E1N6
Brand:
MITSUBISHI
Product Condition:
New
HP Rating @ 110% OL:
10 HP
HP Rating @ 120% OL:
7.5 HP
HP Rating @ 150% OL:
7.5 HP
HP Rating @ 200% OL:
5 HP
Amp Rating @ 110% OL:
34 A
Amp Rating @ 120% OL:
31 A
Amp Rating @ 150% OL:
24 A
Amp Rating @ 200% OL:
17.5 A
Output Voltage:
230 V
Output Amperage Rating:
34 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Frame Size:
D
Constant Torque / Variable Torque:
Variable Torque
Horsepower Rating:
5 HP
Horsepower Rating:
7.5 HP
Horsepower Rating:
10 HP
Rated Amps:
17.5 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Enclosure Rating:
UL Type 1
Height:
12.80 in
Width:
8.70 in
Depth:
6.70 in

Product Information

MITSUBISHI A800E Series

CT INVERTER 7.5HP(ND) 230V W/ETHERNET

Highlights

  • Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
  • Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
  • Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
  • Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
  • CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
  • Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
  • Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
  • Reduced Cost - Standard Ethernet connectivity without add-on modules.
