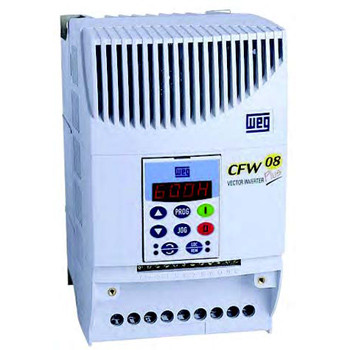

1HP 460V WEG VFD, Inverter, AC Drive CFW080027TGN1A1Z (CFW080027TGN1A1Z)

1HP 460V WEG VFD, Inverter, AC Drive CFW080027TGN1A1Z (CFW080027TGN1A1Z)

Brand:
WEG
Model:
CFW080027TGN1A1Z
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $715.00
Online Price: $405.99
Adding to cart… The item has been added
  • V/Hz and Sensorless Vector Control
  • NEMA 1 Enclosure
  • Single and Three-phase input voltage
  • 200-240V or 380-480V input voltage
  • 150% current overload capacity
  • 16 bit DSP controlled PWM output
  • 2.5 / 5 / 10 / 15 kHz adjustable switching frequency
  • Four isolated programmable digital inputs
  • Two programmable relay outputs
  • Two isolated programmable analog inputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
  • Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude, 90% humidity, non-condensing
    • Write a Review

    Technical Specifications

    Model:
    CFW080027TGN1A1Z
    Brand:
    WEG
    Product Condition:
    New
    Horsepower Rating:
    1 HP
    HP Rating @ 150% OL:
    2.7 HP
    Rated Amps:
    2.7 A
    Amp Rating @ 150% OL:
    2.7 A
    Rated Voltage:
    460 V
    Output Voltage:
    460 V
    Output Amperage Rating:
    2.7 A
    Phase Rating:
    3 Phase Input - 3 Phase Output
    Constant Torque / Variable Torque:
    Variable Torque
    Phase:
    Three Phase
    Enclosure Rating:
    UL Type 1
    Height:
    9.70 in
    Width:
    4.50 in
    Depth:
    5.90 in

    Product Information

    WEG CFW08 Series

    WEG CFW08 Series Compact Variable Frequency Drive (VFD)

    The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.

    Features:

    Highlights

  • V/Hz and Sensorless Vector Control
  • NEMA 1 Enclosure
  • Single and Three-phase input voltage
  • 200-240V or 380-480V input voltage
  • 150% current overload capacity
  • 16 bit DSP controlled PWM output
  • 2.5 / 5 / 10 / 15 kHz adjustable switching frequency
  • Four isolated programmable digital inputs
  • Two programmable relay outputs
  • Two isolated programmable analog inputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
  • Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude, 90% humidity, non-condensing

    • Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW08

    Model
    CFW080027TGN1A1Z

    Condition
    New

    Constant/Variable Torque
    CT

    Horse Power
    1 HP

    Maximum Amps
    2.7 A

    Input
    3-Phase
    460V

    Output
    3-Phase
    460V

    Dimensions
    Height: 9.70 in
    Width: 4.50 in
    Depth: 5.90 in

    Enclosure
    NEMA 1
