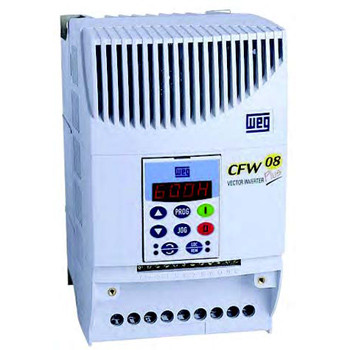

1HP 460V WEG VFD, Inverter, AC Drive CFW080026TGN1A1Z (CFW080026TGN1A1Z)

1HP 460V WEG VFD, Inverter, AC Drive CFW080026TGN1A1Z (CFW080026TGN1A1Z)

Brand:
WEG
Model:
CFW080026TGN1A1Z
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • V/Hz and Sensorless Vector Control
  • NEMA 1 Enclosure
  • Single and Three-phase input voltage
  • 200-240V or 380-480V input voltage
  • 150% current overload capacity
  • 16 bit DSP controlled PWM output
  • 2.5 / 5 / 10 / 15 kHz adjustable switching frequency
  • Four isolated programmable digital inputs
  • Two programmable relay outputs
  • Two isolated programmable analog inputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
  • Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude, 90% humidity, non-condensing
    • Write a Review

    Technical Specifications

    Product Information

    WEG CFW08 Series

    VFD - CFW

    Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW08

    Model
    CFW080026TGN1A1Z

    Condition
    New

    Constant/Variable Torque
    CT

    Horse Power
    1 HP

    Maximum Amps
    2.6 A

    Input
    3-Phase
    460V

    Output
    3-Phase
    460V

    Dimensions
    Height: 6.80 in
    Width: 3.00 in
    Depth: 5.20 in

    Enclosure
    NEMA 1
