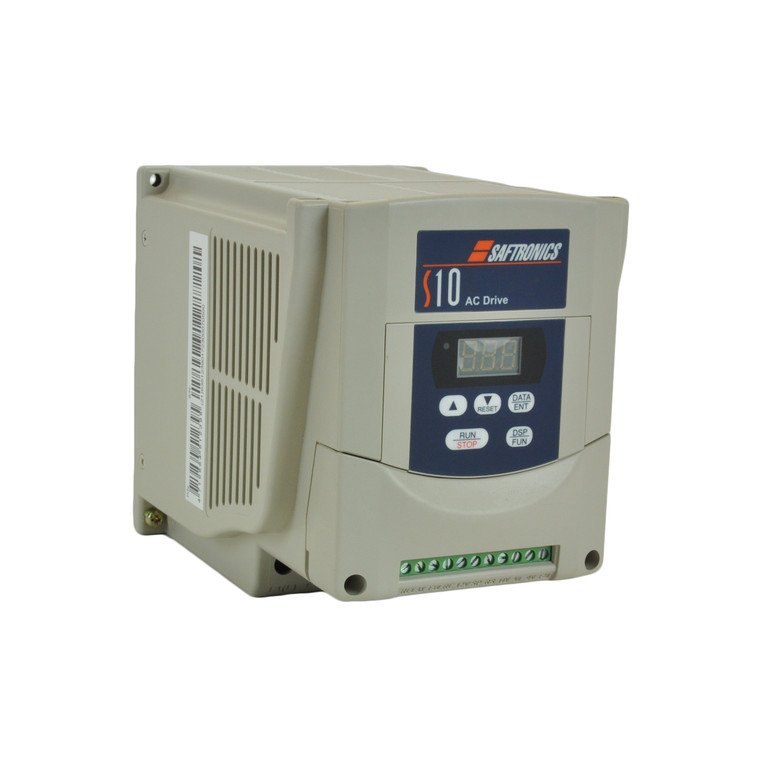

1HP 120V Saftronics VFD, Inverter, AC Drive S101001-41

Brand: Saftronics
Model: S101001-41-R3F8D
Condition: Seller refurbished
Rating:
0% of 100

Out of stock
$307.99
Compare with similar items

Technical Specifications
Phase Rating 1 Phase Input - 3 Phase Output
Constant Torque / Variable Torque Variable Torque
Series S10
Phase Single Phase
Rated Amps 4.2 A
Enclosure Rating UL Type 4X
Brand Saftronics
Horsepower Rating 1 HP
Rated Voltage 115 V, 230 V
Product Condition Seller refurbished
Output Voltage 230 V
Output Amperage Rating 4.2 A
HP Rating @ 150% OL 1 HP
Amp Rating @ 150% OL 4.2 A
Model S101001-41
Height 8.46 in
Width 5.51 in
Depth 7.19 in
Product Information

Saftronics S10 Series

The Saftronics S10 series drives are manufactured using industry established PWM technology and a powerful software platform allowing for flexibility for user-based programming.

Standard Features

  • No de-rating needed for single phase input
  • A full set of motor and drive diagnostics
  • Programmable I/O
  • Power ride through
  • DC injection braking
  • 3 event fault log
  • 6 selectable V/Hz curves.
  • Frequency range of 1 to 200 HZ
  • Overload protection of 150% for up to 1 minute.
  • Mounting screws or DIN rail installation
  • Digital LED display
  • Adjustable torque boost
  • Alarms for motor overload, overheat, & overcurrent
  • Programmable accelerate/decelerate time between 0.1-999 Seconds
