Delta logo

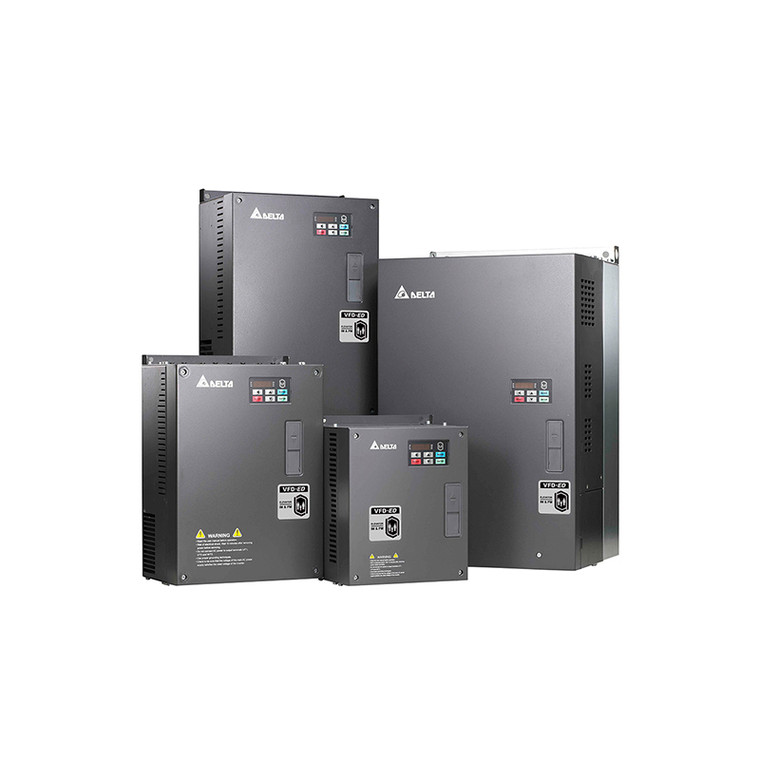

15HP 230V Delta VFD-ED VFD, Inverter, AC Drive VFD110ED23S (VFD110ED23S)

Brand:
Delta
Model:
VFD110ED23S
Condition:
New
0 Customer Reviews
In Stock
Online Price: $892.50
Adding to cart… The item has been added
  • Power rating from 2.2kW to 75 kW
  • Supports both asynchronous and synchronous motors
  • Output frequency up to 400Hz
  • 8 programmable digital inputs/ 6 programmable output
  • Supports various encoders (ABZ, ABZ+UVW, SIN/COS, SIN/COS+Endat2.1)
  • Supports single output contactor operation (SIL2)
  • Built-in with CAN/Modbus communication interface
  • Built-in 7 segment digit keypad, optional LCD keypad available
  • Auto-tuning with the load attached
  • Overload capacity up to 200%
  • Supports 1-phase 230VAC Uninterrupted Power System(UPS)
  • Compact dimensions

Technical Specifications

Model:
VFD110ED23S
Brand:
Delta
Product Condition:
New
Warranty:
1 Year
HP Rating @ 150% OL:
15 HP
Amp Rating @ 150% OL:
45 A
Output Voltage:
230 V
Output Amperage Rating:
45 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Constant Torque
Phase:
Three Phase
Horsepower Rating:
15 HP
Rated Amps:
45 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Enclosure Rating:
IP 20
Series:
VFD-ED
Height:
13.78 in
Width:
9.25 in
Depth:
5.75 in

Product Information

Delta VFD-ED Series

Delta's VFD-ED series AC motor drive designed for elevators are based on years' of experiences in designing AC motor drives, and the experience accumulated since the first Delta elevator AC motor drive VL series launched in 2007. The VFD-ED Series Not only keep safety as first priority but also enhances operation efficiency and riding comfort.
